Description

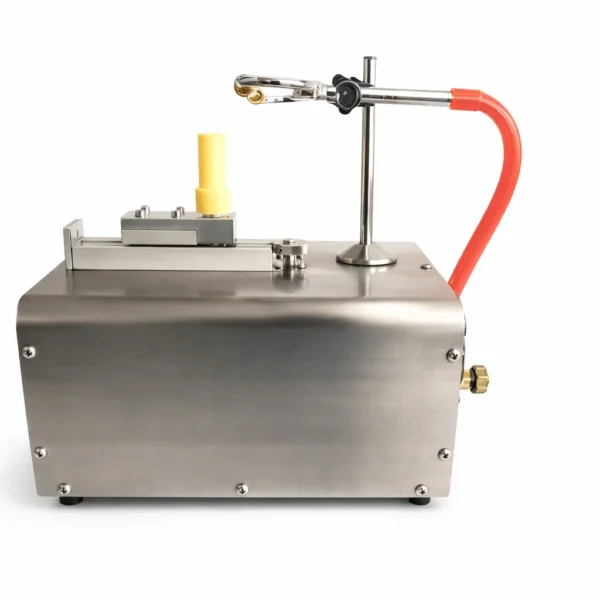

The GBS-1 Automatic Rotary Ampoule Flame Sealing Machine is a compact, high-efficiency thermal sealing device for glass ampoules and tubular glass bottles.
As a dedicated ampoule flame sealer, this unit runs on liquefied petroleum gas or natural gas to create concentrated heating flames. Its built-in air supply system maintains steady combustion and precise neck sealing, producing results matching full industrial automatic ampoule sealing equipment.
Built-in automatic bottle rotation delivers balanced heating across glass necks and cleaner, more uniform sealed finishes, with sealing quality comparable to large fully automatic machines.
This bench-top sealing unit targets laboratory scenarios and sees wide use in pharmaceutical research labs, hospital pharmacy preparation rooms, educational institutes and small-batch production lines.
Operation Guide for Gas Flame Ampoule Sealer
- Liquefied petroleum gas or natural gas generates focused sealing flame.
- A motor drives the ampoule fixture to rotate at a fixed constant speed.
- The ampoule neck heats evenly until glass turns soft and malleable.
- Operators stretch the softened glass with stainless steel tweezers.
- Secondary flame treatment smooths the bottle tip to remove rough crystal textures.
Operation Tips
For first-time use, slide bottles slowly into the fixture and guide them toward the flame zone. Check for off-center rotation and record the heating time needed for the neck to glow red hot.
Once the heated neck softens and sags downwards, pull the glass outward with tweezers. Do not remove the bottle from the flame immediately after stretching. Keep the tip under flame until all crystalline edges melt into a smooth rounded seal before taking it out.
Detailed, easy-to-follow operation manuals come standard with every unit after purchase.
Main Component Details

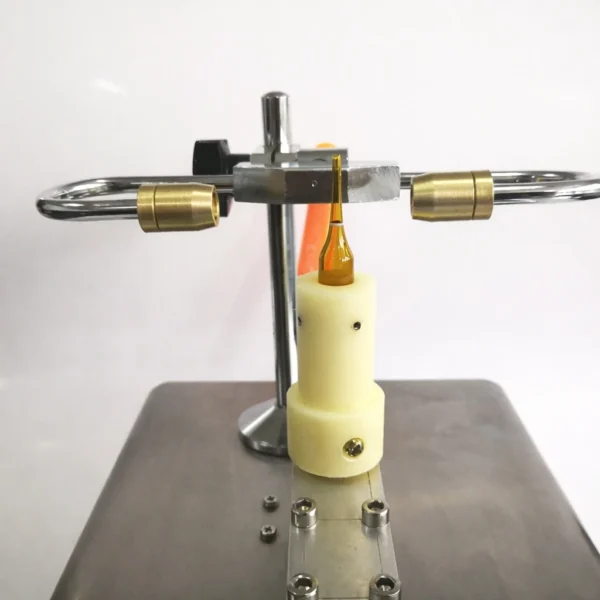

Ampoule Fixture
Sliding Rail
Driving Wheel & Driven Wheel
Suitable Products & Supporting Resources
This flame sealing machine delivers accurate, efficient heat sealing for glass ampoules, reagent vials and miniature glass bottles.
Clear product detail images showcase the machine’s structure and finished sealing effect. Full operation demonstration videos are also available. These videos display the running process of the GBS-1 bench-top ampoule sealer and its reliable sealing output.
Core Product Advantages
- Automatic rotary design guarantees consistent sealing results
- Adjustable rotation speed and precise flame control
- Produces airtight, high-quality seals every time
- Ideal for labs, hospitals, small pharmaceutical workshops and biotechnology facilities
- Compact, durable body with simple operation and low maintenance demands

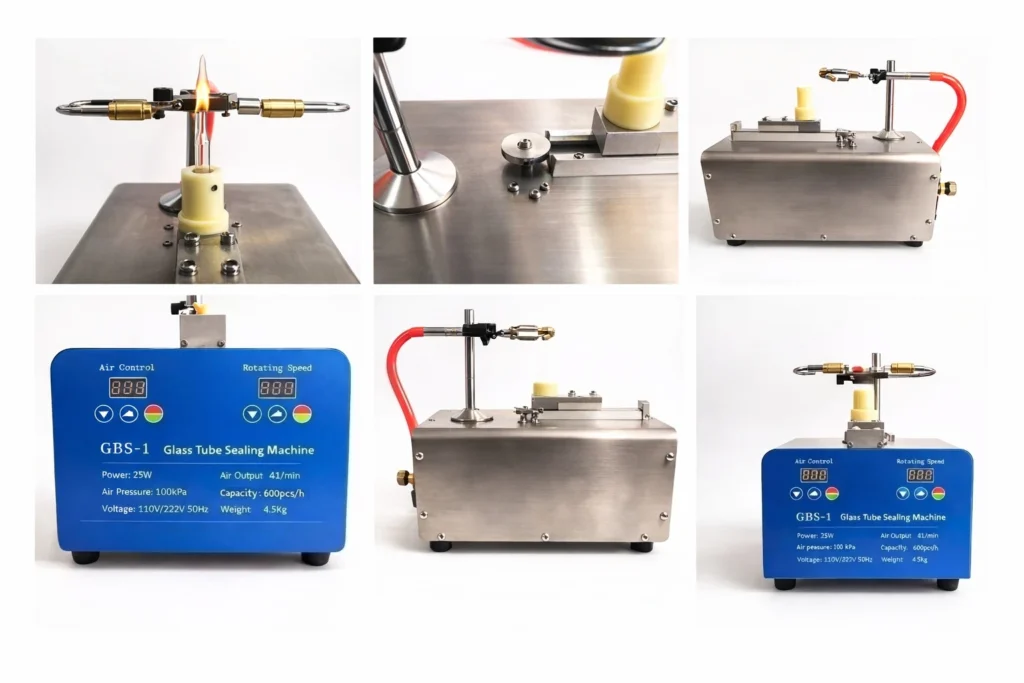

Product Detail Images of Flame Sealing Machine
Technical Parameters
| Parameter Item | Specification |
|---|---|
| Model | GBS-1 Automatic Rotary Ampoule Flame Sealing Machine |
| Production Output | 600 bottles per hour |
| Input Voltage | 110V / 220V, 50Hz |
| Total Power | 25W |
| Air Output Volume | 4 L per minute |
| Air Pressure | 100 kPa |
| Net Weight | 4.5 kg |
| Overall Dimension | 305 mm × 205 mm × 360 mm |
Standard Full Set Accessories for GBS-1
- 1 main sealing machine
- 1 power cord
- 1 pair of stainless steel tweezers
- 1 fixture mold (size options from 1ml to 20ml, one specification included)
Comparison of Three Different Ampoule Sealing Models

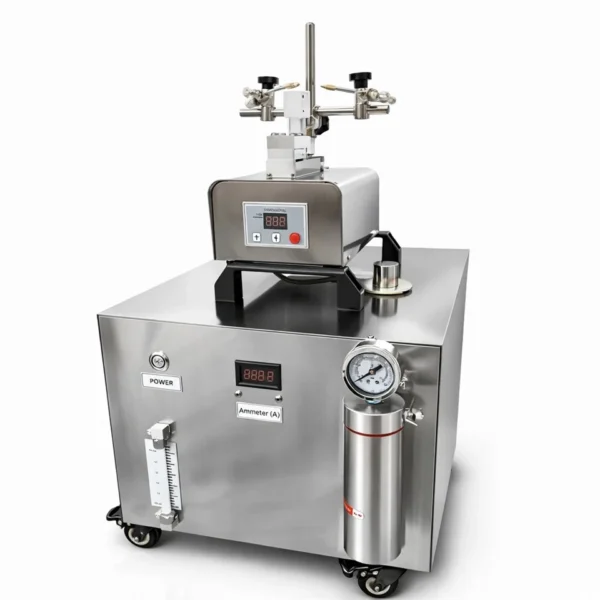

| Comparison Item | RF-1 Manual Ampoule Sealing Machine | GBS-1 Auto Rotating Ampoule Sealer | OHYH-200A Hydrogen-Oxygen Ampoule Sealer |
|---|---|---|---|
| Sealing Method | Gas flame sealing with fully manual operation | Gas flame sealing with automatic bottle rotation | Hydrogen-oxygen flame sealing with manual bottle handling |
| Compatible Ampoule Sizes | 1ml – 20ml | 1ml – 20ml | 1ml – 20ml |
| Fuel Gas Type | Liquefied petroleum gas or natural gas | Liquefied petroleum gas / natural gas with built-in air generator | Electrolysis-produced hydrogen-oxygen mixed gas |
| Operation Mode | Manual bottle rotation and sealing | Semi-automatic, automatic bottle spinning | Manual bottle positioning under high-temperature flame |
| Production Speed | 600 – 800 bottles per hour | 600 bottles per hour | Dependent on operator proficiency |
| Flame Performance | Even flame distribution for smooth seals | Concentrated, stable and evenly distributed flame | Ultra-high temperature flame (2800–3000°C) |
| Power Supply | 220V | Dual 110V / 220V global compatible voltage | 220V |
| Power Consumption | 7 W | 25 W | 1000 W |
| Safety Mechanisms | Low noise, simple internal construction | Automatic rotation reduces risk of hand burns | Dual dry & wet anti-backfire systems with auto gas shut-off |
| Noise Level | Zero extra operating noise | Low running noise | Low running noise |
| Net Weight | 3.2 kg | 4.5 kg | 48 kg |
| Overall Dimension | 300 × 180 × 350 mm | 305 × 205 × 360 mm | 550 × 330 × 450 mm |
| Typical Application Scenarios | Hospitals, laboratories, schools, small pharmaceutical workshops | Educational labs, research departments, small-batch pilot production | Pharmaceutical and chemical factories complying with GMP standards |
| Core Strengths | Mini footprint, cost-effective, easy storage, fast sealing speed | Intuitive operation with zero complex training requirements, uniform sealing quality | Clean energy source, ultra-high working temperature, full GMP compliance |
| Recommended Users | Entry-level users with basic sealing demands | Operators seeking safer workflow and consistent sealing quality | Professional manufacturers with strict quality and safety standards |
