Description

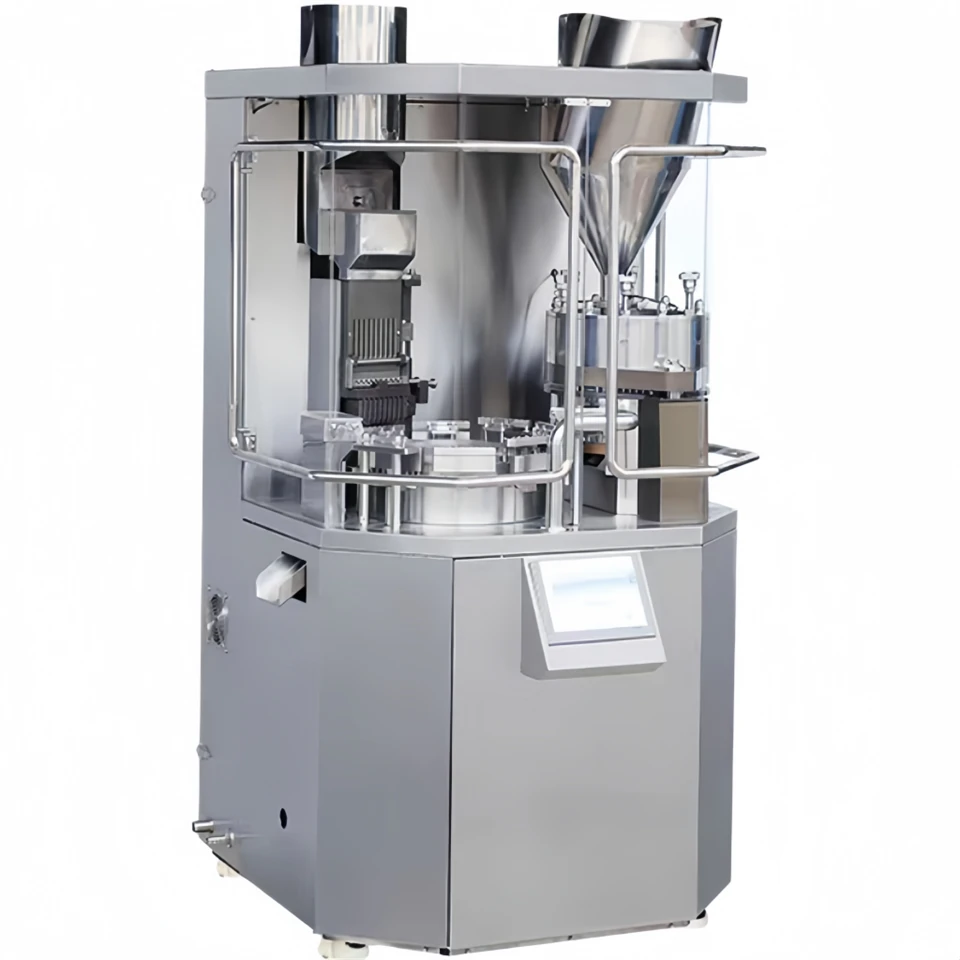

What is the NJP-1200C Automatic Capsule Filling Machine?
This Automatic Capsule Filling Machine uses advanced tamping pin filling technology, intermittent running mode and frequency conversion speed control. It mainly fills powder and small pellet materials into hard gelatin capsules.
This capsule filling machine can finish all production steps automatically. It feeds empty capsules, splits capsules apart, fills raw materials, throws away defective capsules, locks capsule halves and sends out finished capsules. It brings high efficiency and steady performance for pharmaceutical production.

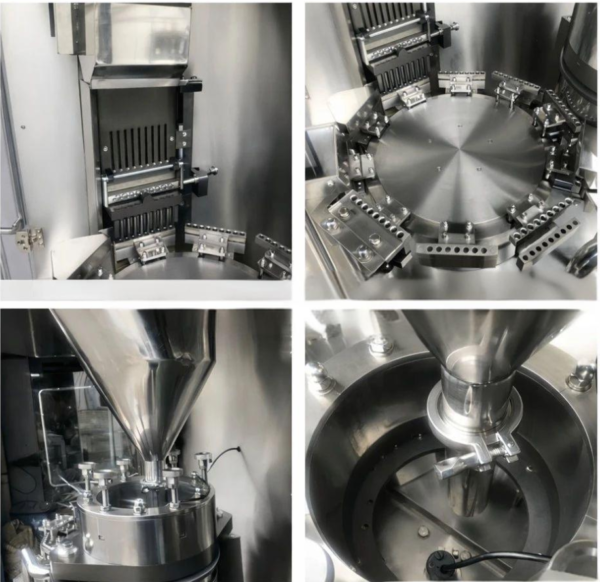

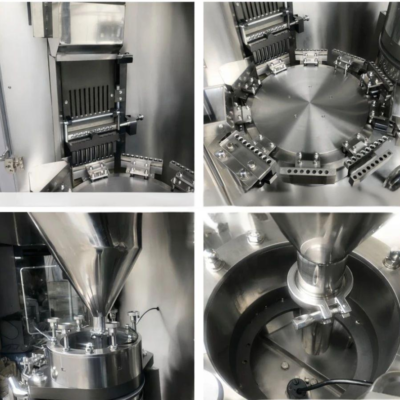

We upgrade the machine’s inner structure with a fully closed 10-station rotary table. This design brings high filling precision and low running noise, and it works well with all standard capsule sizes. We choose world-famous brand parts for key components like bearings and electric parts. These reliable parts support long service life and stable high-speed continuous work.
This practical Automatic Capsule Filling Machine boasts stable performance and wide industry adaptability. Many factories in pharmaceutical, nutraceutical and healthcare industries use this automatic capsule filling machine. It is perfect equipment for complete capsule production lines. This versatile Automatic Capsule Filling Machine perfectly supports standardized and continuous capsule mass production.
Key Features of the Automatic Capsule Filling Machine
- Small Size and Low Energy Use
The machine takes little floor space and consumes less power. You can change molds quickly. Workers easily operate and clean it. It runs smoothly with small vibration and soft noise at high speed, so it fits long-time continuous capsule making.
- Fully Closed Structure
We cover all rotating parts with closed shells and equip full lubrication systems. Oil will not leak onto the working surface, and this design stops different medicines from mixing together.
- Baffle for Metering Plate
We fix a surrounding baffle around the metering tray. This baffle catches powder splashing from the bottom of the tray. A separate pipe sends the collected powder back for reuse and cuts down dust on the working table.
- Smart PLC Control System

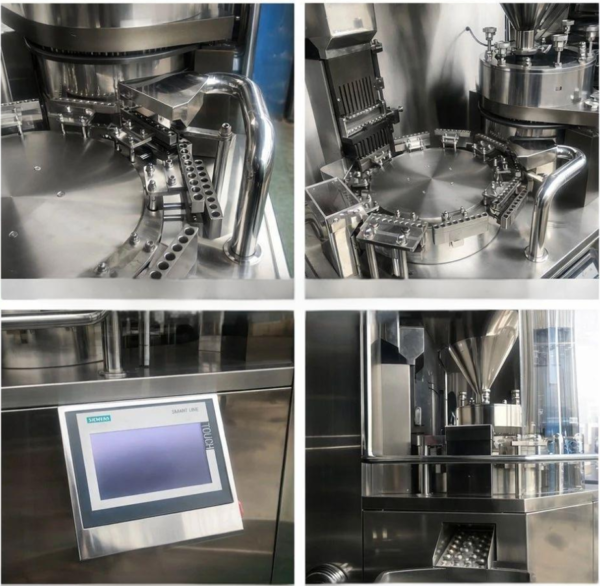

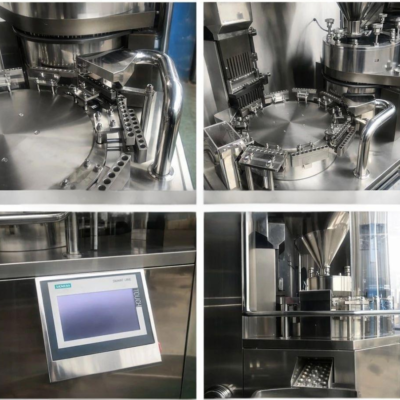

The machine carries a friendly touch screen HMI connected with a PLC system. It shows real-time output numbers, checks capsule and powder conditions, sends warning signals when materials run low, stops itself without powder and finds machine faults automatically. All these functions let the capsule filling machine work safely and steadily.
Technical Specifications
|
Item
|
Specification
|
|---|---|
|
Equipment Model
|
NJP-1200C
|
|
Number of Holes
|
9
|
|
Production Output
|
72000 pieces per hour
|
|
Applicable Capsule Sizes
|
0#-4#
|
|
Power Supply
|
380V/220V 3P 50Hz
|
|
Total Power
|
Main motor 1.1KW, vacuum pump 0.75KW, vacuum cleaning 1.5KW
|
|
Overall Dimension (L×W×H)
|
1000×1300×1900mm
|
|
Vacuum Parameter
|
20m³/h, 0.04-0.08Mpa
|
|
Vacuum Pump Parameter
|
17.6Kpa, 180m³/h
|
|
Working Noise
|
Less than 80DB(A)
|
|
Capsule Utilization Rate
|
Empty capsule separation 99.9%, finished capsule sealing above 99.5%
|
|
Filling Weight Tolerance
|
±3% to ±4%
|
|
Machine Weight
|
1000Kg
|
|
Compliance Standards
|
GMP standard, enterprise standard, CE standard
|
|
Main Materials
|
Molds: lightweight aerospace aluminum; Machine body: 304 stainless steel
|
Product Summary
The NJP-1200C fully automatic capsule filling machine is a compact, energy-saving and high-precision production device. It adopts fully enclosed structure and intelligent PLC control to ensure clean, stable and low-noise operation. With high capsule qualification rate and accurate filling volume, it fully meets GMP and CE industrial standards. It is highly suitable for mass production of pharmaceutical and health-care capsules and serves as reliable and cost-effective processing equipment for various manufacturing factories.
Packing and Shipping
We pack this capsule filling machine with thick protective materials to avoid scratches and damage during long-distance transport. We also provide complete international logistics services to deliver machines to all overseas customers safely.
