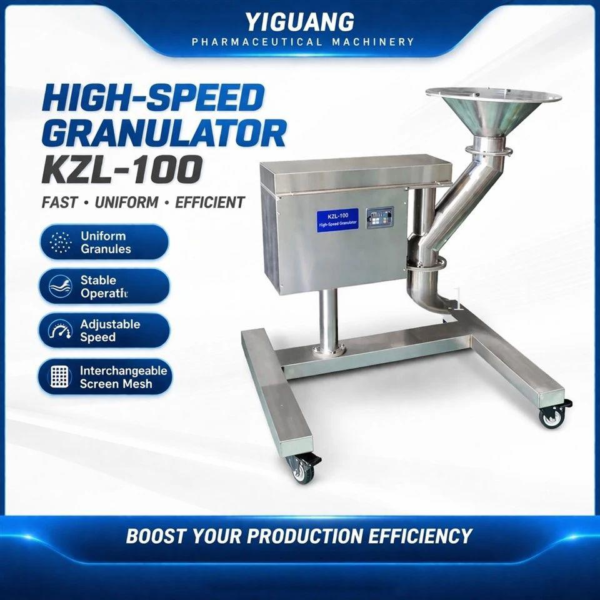

The KZL Series
Conical Screen Granulator is a common processing machine for the pharmaceutical, chemical and food industries. It focuses on professional powder sizing and particle size reduction, and efficiently resizes particles and produces uniform standard granules.
This machine is equipped with a conical screen and a high-speed rotor system. It uses centrifugal force to push raw materials through precision perforated screens. This working method ensures consistent granule sizes and stable product quality.
The granulator is ideal for breaking clustered materials, crushing hard fine particles and turning large material lumps into even granules. It can perfectly replace traditional oscillating granulators in most production scenarios.
Features of the KZL Rapid Granulator
- The machine produces little heat and low dust during continuous operation.
- The stainless steel stator screen features strong durability and long service life.
- The gap between grinding blades and the screen is adjustable to meet different processing needs.
- It supports the processing of sticky, gummy, heat-sensitive and moist materials that ordinary machines cannot handle well.
Main Components
The Conical Screen Granulator For Powder Sizing and Particle Size Reduction mainly includes the feed hopper, speed controller and discharge outlet. The feed hopper and discharge outlet are made of polished 304 stainless steel to stop materials from sticking and blocking. Users can change the rotation speed via the controller to suit different materials. Well-designed components support steady feeding and smooth discharging during granulation.

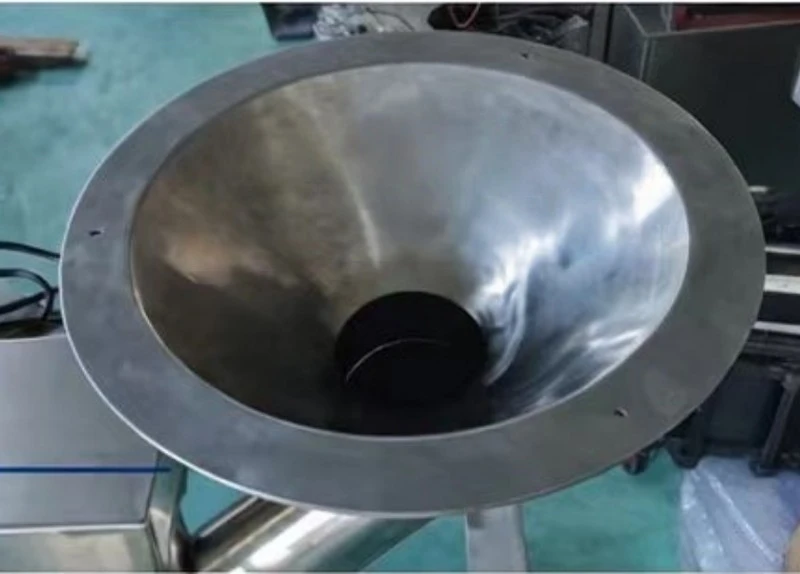

The feed hopper is made of 304 stainless steel with polished inner and outer surfaces. The smooth finish prevents material adhesion and ensures smooth and continuous feeding during production.

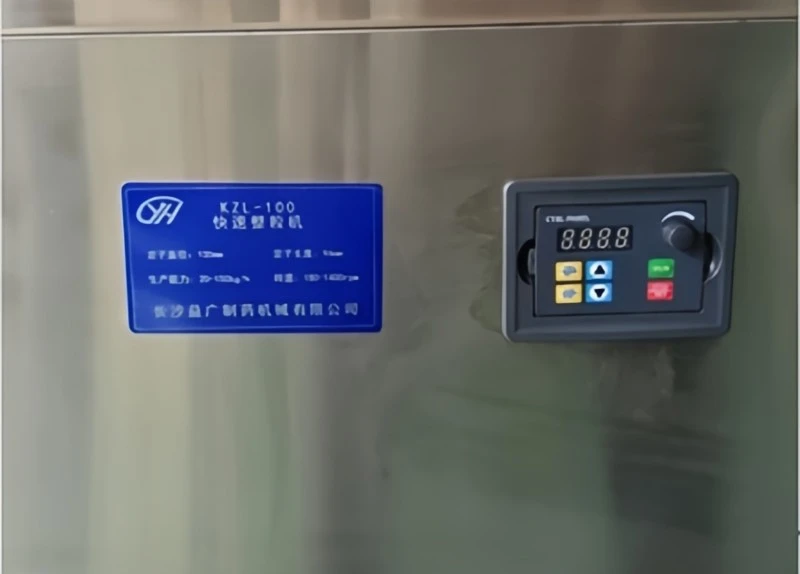

Operators can adjust the granulation speed according to different material characteristics. The adjustable speed range is from 180 to 1400 RPM. Users can easily change the rotating speed by turning the black control knob.

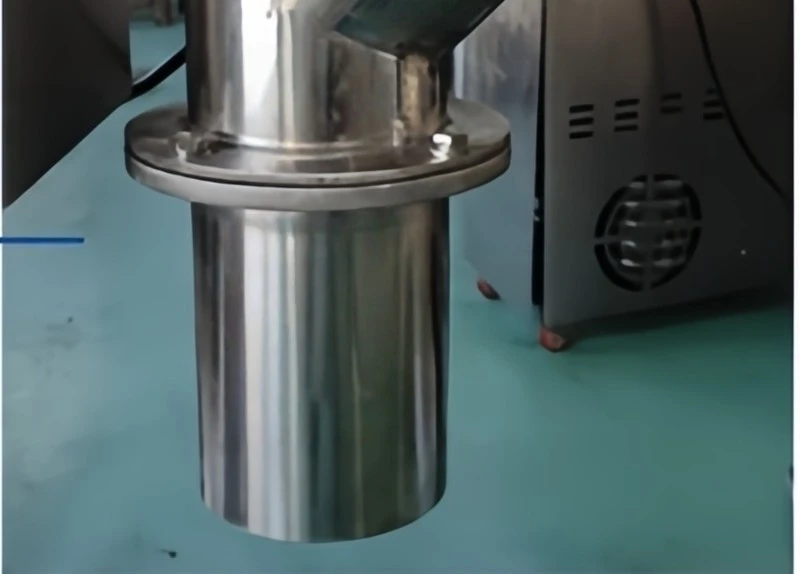

The discharge outlet adopts high-quality 304 stainless steel and receives full internal and external polishing treatment to effectively prevent material clogging. A built-in stainless steel sieve is installed at the outlet for secondary screening.

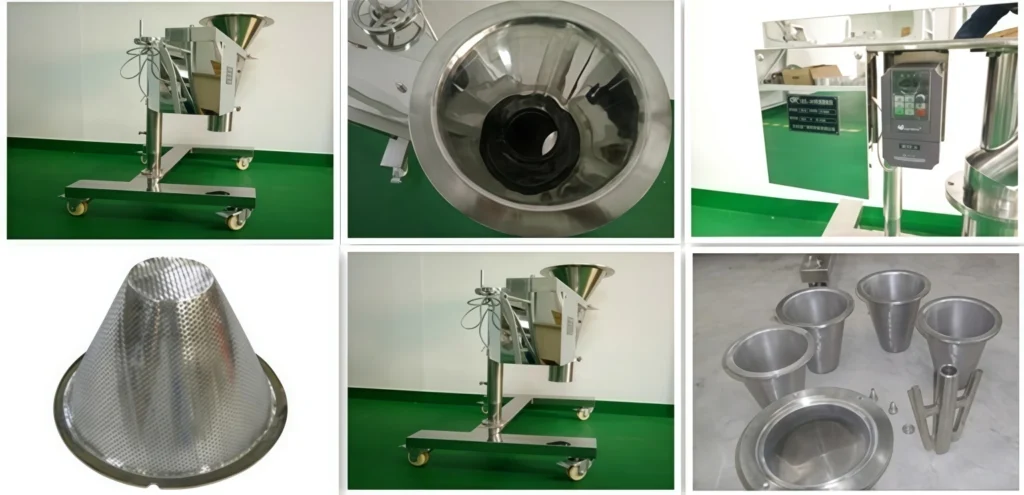

Detailed Product Photos
Clear detailed photos show the overall structure of the Conical Screen Granulator For Powder Sizing and Particle Size Reduction. You can view the feed hopper, speed controller, discharge outlet and other key parts closely. These pictures help you know the appearance and structural features of the machine intuitively before purchase.

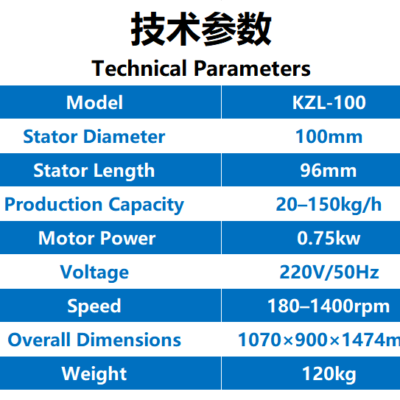

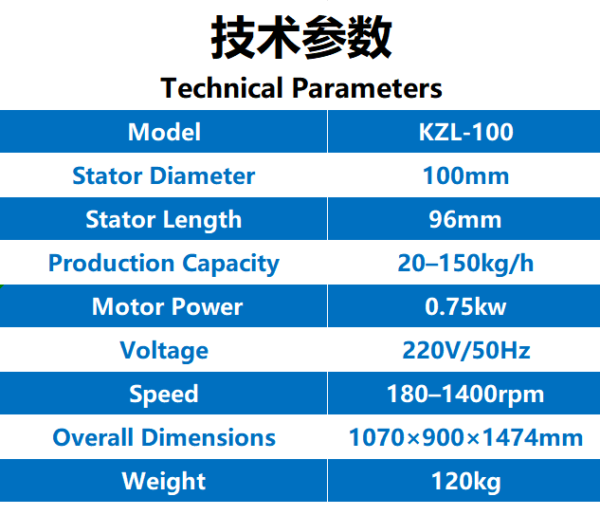

Technical Parameters
|
Parameter Item
|
KZL-100
|
KZL-180
|
KZL-300
|
|
Stator Diameter (mm)
|
100
|
180
|
300
|
|
Stator Length (mm)
|
96
|
179
|
305
|
|
Capacity (kg/h)
|
20–150
|
100–1500
|
500–2500
|
|
Power (kW)
|
0.75
|
1.5
|
5.5
|
|
Speed (rpm)
|
180–1400
|
175–1400
|
200–1400
|
Packing and Shipping
Every machine is packed with thick shockproof materials to avoid scratches and collision damage during long-distance transportation. Professional one-stop international logistics services ensure safe and on-time delivery to global customers.
Product Summary
The KZL Series Conical Screen Granulator is a versatile, low-dust and high-efficiency granulation and particle sizing machine dedicated to powder sizing and particle size reduction. It features adjustable speed, flexible blade clearance and strong material compatibility to process various difficult raw materials. With multiple models designed for different production capacities, this stable and durable equipment meets small, medium and large batch production needs in pharmaceutical, chemical and food industries, and it serves as an ideal replacement for traditional granulation machines in daily manufacturing.
