Description
What Is a Blister Packing Machine
A blister packing machine is packaging equipment. It forms cavities from plastic or aluminum materials. You fill these cavities with solid products such as tablets or capsules. Then the machine seals the cavities with aluminum foil or base material and cuts the whole sheet into finished blister packs.
We design this compact blister packing machine for users who value flexible production and good packaging quality more than ultra-high speed. It works well in pharmaceutical, food and medical industries for small-batch production, trial runs and packaging of different products.

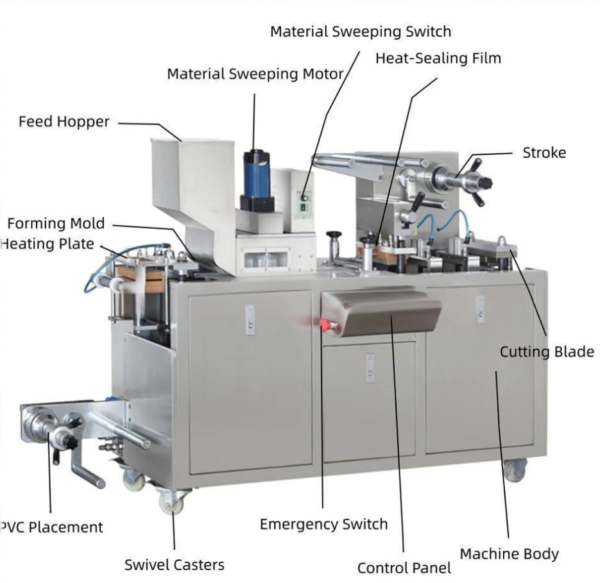

The machine combines automatic feeding, precise forming, sealing and cutting. It keeps blister quality steady. At the same time, it takes up little space and is easy to operate.

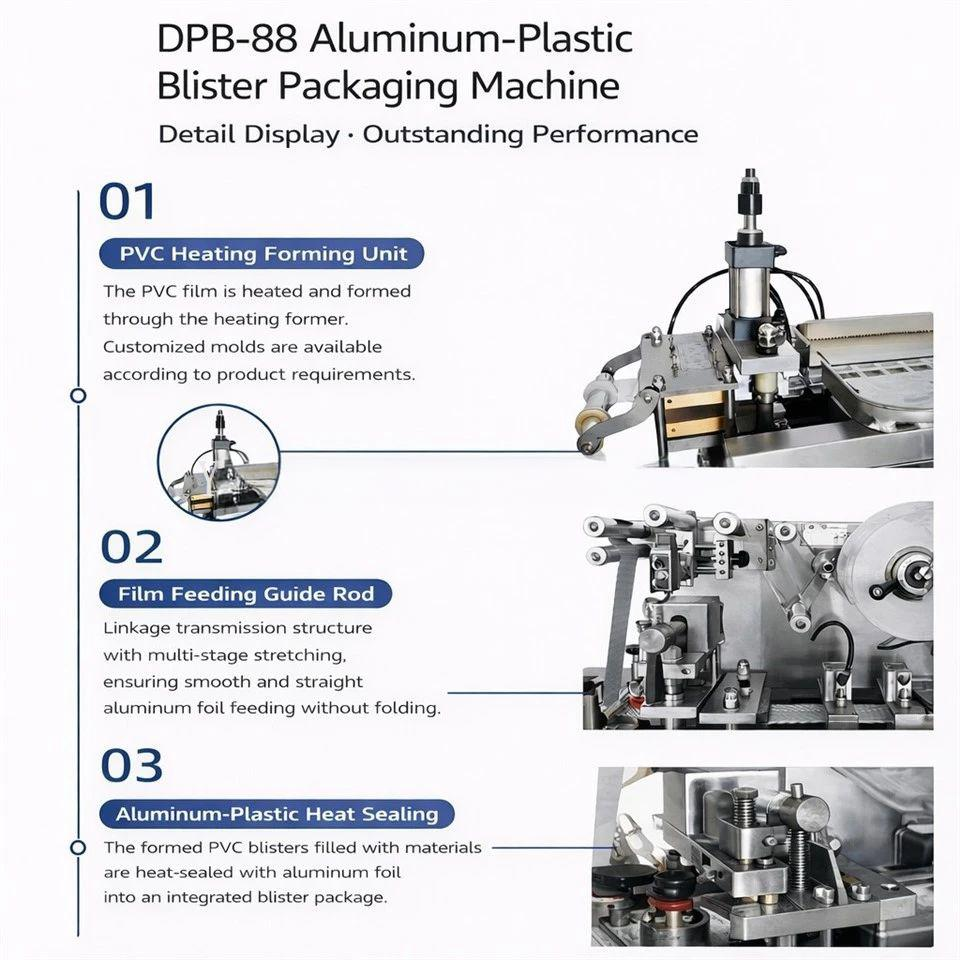

Work Process
-
Forming (Upper and Lower Heating) Workers heat PVC or aluminum material from top and bottom. The material turns into neat blister cavities with uniform shape and depth.
-
Heat Sealing (Upper Heating) The machine uses top heating to seal formed blisters with aluminum foil. This creates strong seals and protects your products well.
-
Embossing During sealing, the machine presses batch numbers, logos or other marks onto blister surfaces. These marks help you tell different products apart.
-
Impression The machine makes clear, neat impressions. These marks improve the look and readability of information on blister packs.
-
Cutting The machine cuts sealed blister sheets into separate blister packs. Every pack has clean edges and standard sizes.
-
Finished Product Output Finished blister packs come out of the machine automatically. You can check them or put them into outer packages right away.
We give you a complete user manual for installation and operation. We also offer remote video guidance and professional after-sales technical support.
Key Features of Compact Blister Packing Machine
-

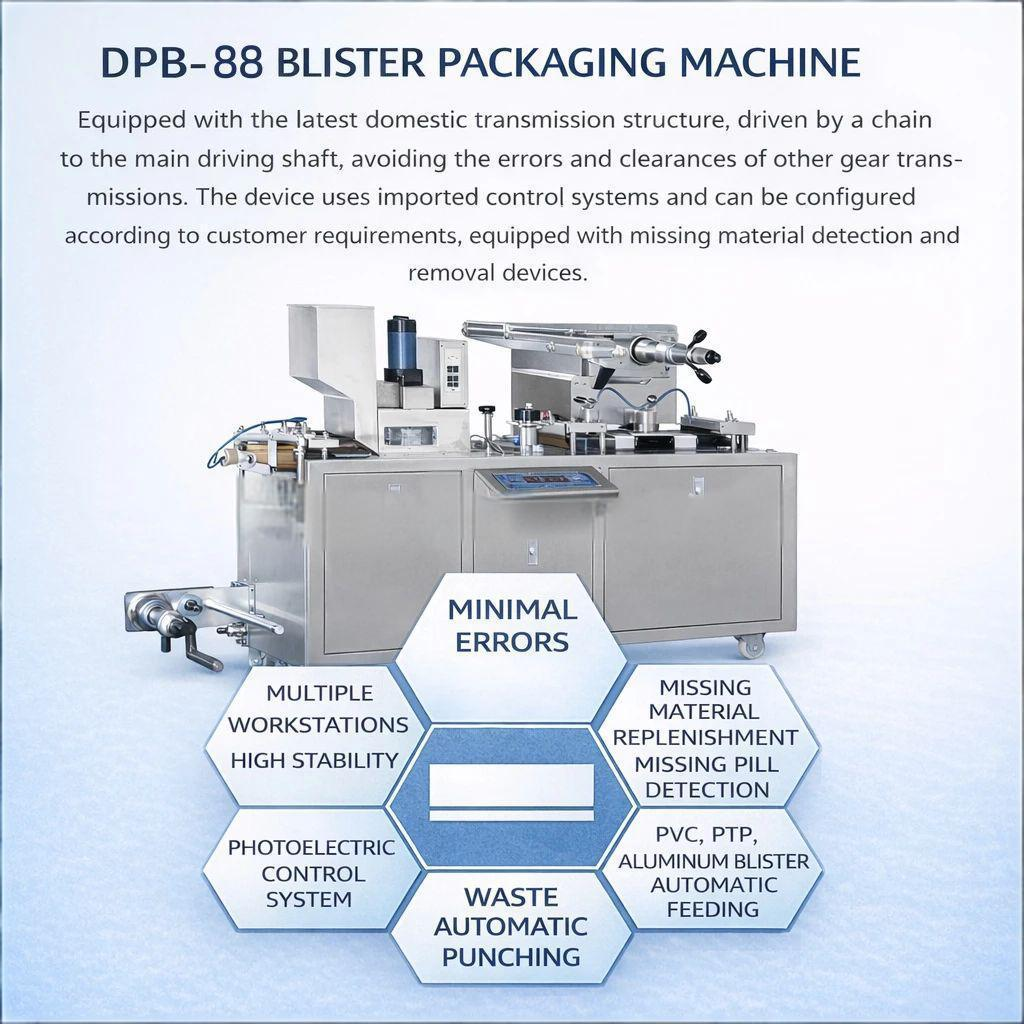

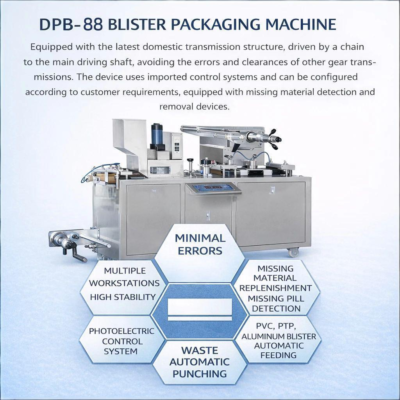

Advanced Chain-Driven Transmission System We use updated high-power chain transmission to drive the main shaft. This design avoids errors and extra noise found in traditional gear systems. It keeps small-batch blister packaging stable and accurate.
-
Imported Control System with Optional Detection Devices The machine carries a high-precision imported control system. You can choose extra functions including automatic missing-material detection and rejection. It fits tablets, capsules and other solid products perfectly.
-
Photoelectric Automatic Feeding and Waste Cutting A photoelectric control system automatically feeds PVC, PTP aluminum foil and aluminum-aluminum materials. It also cuts off waste edges automatically. All stations work in sync for long continuous production.
-
Optional Photocell Correction and Stepper Motor Traction You can add a photocell registration correction device and imported stepper motor traction. These parts support accurate printing of words and patterns, making blister packs look more high-quality.
-
Wide Industry Applications This machine suits pharmaceutical, nutraceutical, food, medical device, hardware and electronics industries. It makes blister packs for tablets, capsules, pills and small solid goods. It is ideal for small-scale production, laboratory tests and multi-specification packaging.
Technical Parameters
| Parameter | Specification |
| Model | DPP-88 |
| Punch frequency | 10–33 times/min |
| Production capacity | 1980 plates/hour |
| Max. Forming Area & Depth | 90×70mm (standard depth ≤15mm); maximum depth 25mm (adjustable) |
| Standard Stroke Range | 30–80mm (customizable based on customer demands) |
| Standard Plate Size | 80×57mm (customizable based on customer demands) |
| Air pressure | 0.4–0.6MPa |
| Required compressed air | Air compressor ≥0.3m³/min |
| Total power supply | 220V 50Hz, 2.4Kw |
| Main motor | 0.75Kw |
| PVC hard film | 0.15–0.5mm × 110mm |
| PTP Aluminum film | 0.02–0.035mm × 110mm |
| Dialysis Paper | 50–100g × 110mm |
| Mould cooling | Tap water or circulating water |

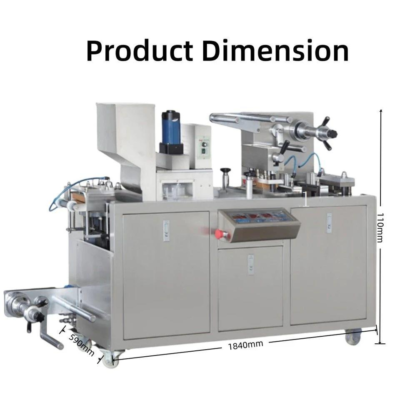

| Overall Dimension | 1840×590×1100mm (L×W×H) |
| Gross Weight | 465kg |
| Noise index | <75dBA |
FAQ
Q: What is the production capacity of the DPP-88 blister packaging machine?
A: The DPB-88 has a production capacity of up to 1980 blisters per hour, depending on product size, material, and operating conditions.
Q: What materials can the DPP-88 blister machine process?
A: The machine supports automatic feeding of: 1. PVC 2. PTP aluminum foil 3. Aluminum-Aluminum (Alu-Alu) materials This allows it to be used for different blister packaging requirements.
Q: What is the maximum forming size and depth?
A: • Maximum forming area: 90 × 70 mm • Standard forming depth: 15 mm • Maximum forming depth: up to 25 mm (customized)
Q: Can the machine detect and reject missing tablets?
A: Yes. According to customer requirements, the DPB-88 can be equipped with: • Missing material replenishment device • Tablet detection and rejection system These are optional configurations.
Q: What control system does the DPP-88 adopt?
A: The machine adopts: • Imported electrical control system • Photoelectric control system This helps ensure synchronized operation and stable material feeding.
Q: How does the transmission system work?
A: The DPB-88 uses a chain-driven main transmission structure. The main shaft is driven by a chain system instead of traditional gear transmission, which reduces transmission errors and noise.
Q: Can the machine make blister packs with printed patterns?
A: Yes. The machine can be optionally equipped with: • Photocell correction system • Imported stepper motor traction This supports printed packaging with image-text registration.
Q: Which industries can use the DPP-88?
A: The DPB-88 is suitable for blister packaging in: • Pharmaceutical industry • Food industry • Medical devices • Hardware products • Electronic components
Q: What power and air supplies does the machine need?
A: • Power supply: 220V, 50Hz • Total power: 2.4 kW • Air pressure: 0.4–0.6 MPa • Air consumption: 0.3 m³/min (air compressor)
Q: What are the machine’s size and weight?
A: • Machine size: 1840 × 590 × 1100 mm • Net weight: 415 kg • Gross weight: 465 kg
Q: How do you guarantee machine quality?
A: Our factory has more than 10 years experience in mechanical processing,exported into many countries and areas; already got customer’s good reputation.
Q: What is the price of this machine?
A: Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
Q: How will you ensure machine quality after we place an order?
A: Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
Q: What installation and after-sales services can you provide?
A: 1.Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2.We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3.It is free to train your worker in our factory or in your side by video.
2.We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3.It is free to train your worker in our factory or in your side by video.

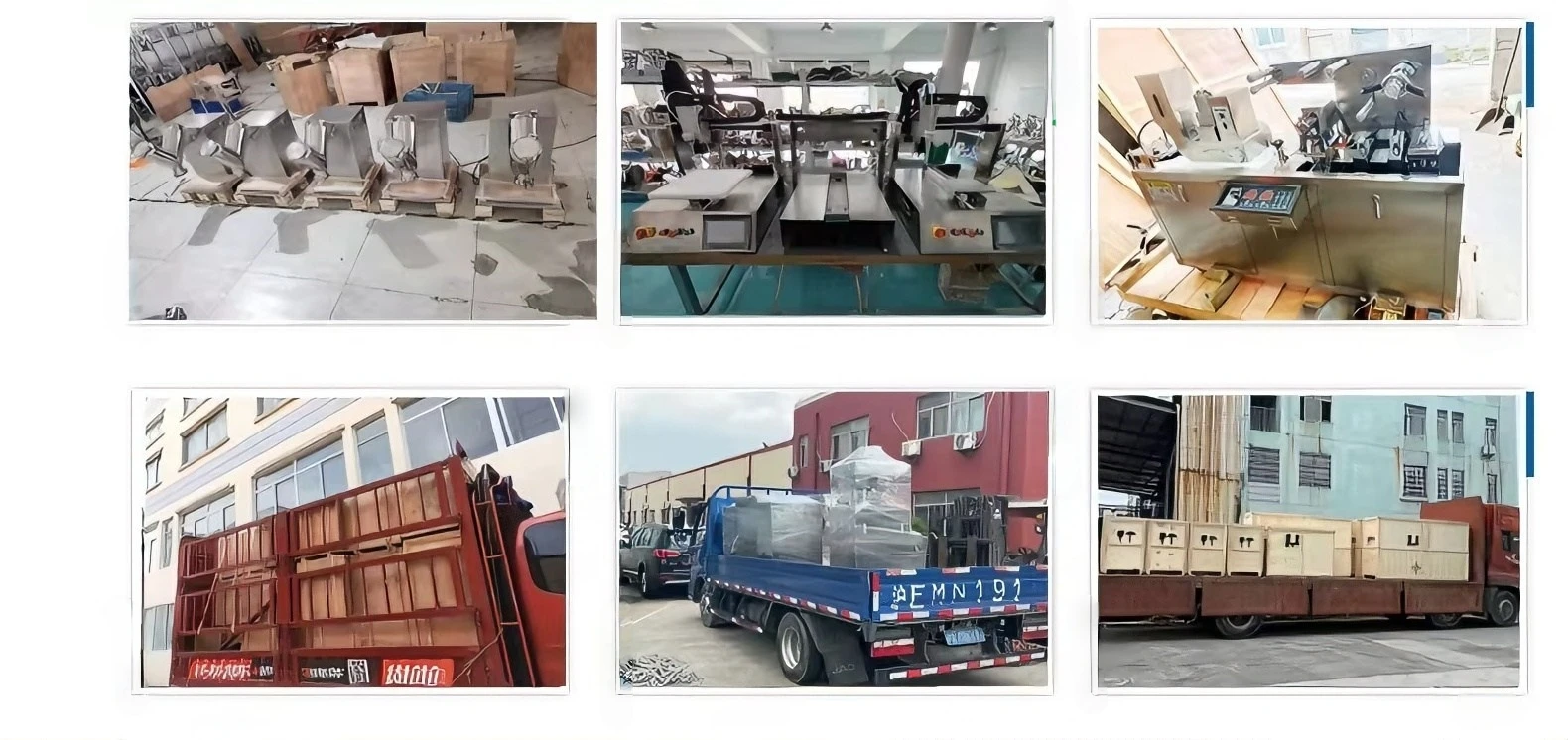

Packing and Shipping
We wrap every machine with professional shockproof materials. Standard packaging prevents scratches and collision damage during long-distance transportation. Reliable international logistics deliver goods safely and on time to customers worldwide.
Product Summary
This DPP-88 compact aluminum-plastic blister packing machine is a space-saving and versatile packaging solution. It runs steadily, supports flexible production and meets the packaging requirements of tablets, capsules and many small solid items. It is the ideal choice for laboratories, research institutes and small and medium manufacturers that need stable small-batch blister packaging.
