Description

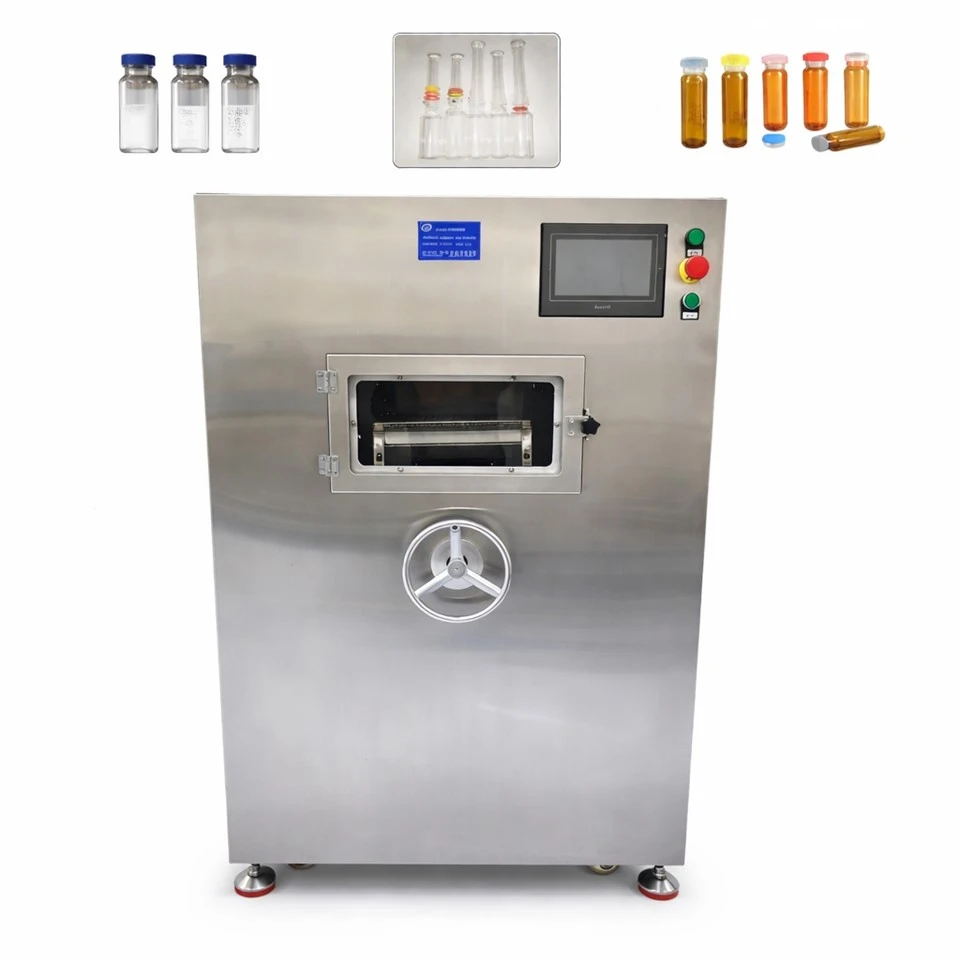

AS-40D Automatic Ampoule and Vial Washing Machine Product Overview
This automatic bottle washing machine, the Automatic Ampoule and Vial Washing Machine, is specially developed for thorough cleaning of ampoules, vials and oral liquid bottles in pharmaceutical production.
Equipped with two independent water tanks for rough washing and fine washing, the machine delivers excellent cleaning performance and fully meets strict industrial sanitary standards.
Bottle size replacement requires no professional tools. Operators only need to place the corresponding washing tray into the fixed slot to complete quick and easy model switching. This flexible design suits the cleaning of various bottle types and perfectly fits small and medium batch production.

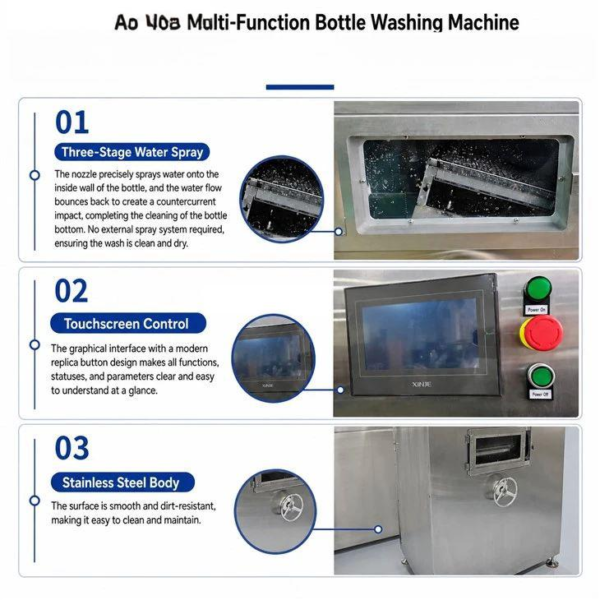

Core Working Principle of AS-40D Washing Machine

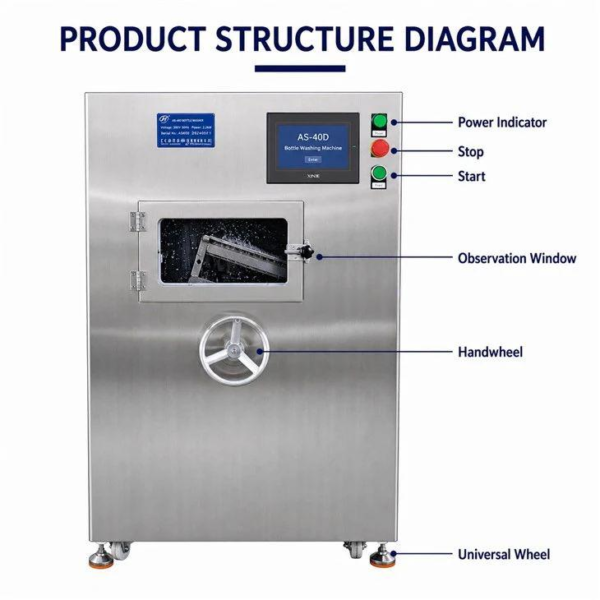

The AS-40D Automatic Ampoule and Vial Washing Machine is fitted with a PLC display screen to monitor and control the entire operating process in real time.
It adopts a rotary cleaning structure. All spray nozzles are fixed inside the machine, while a rotating plate drives bottles to move steadily during operation.
When bottle mouths align with the nozzles, high-pressure water and air spray into the bottles to thoroughly clean inner walls. Continuous rotation of the bottles also allows synchronous cleaning of outer surfaces.
An external baffle reflects the water sprayed on bottle exteriors to rinse the bottle bottoms again. This unique structure achieves all-round dead-angle-free cleaning of the bottle interior, exterior and bottom, ensuring stable and reliable cleaning results.
The optimized structure greatly improves overall cleaning efficiency and maintains consistent washing quality for every batch of products.

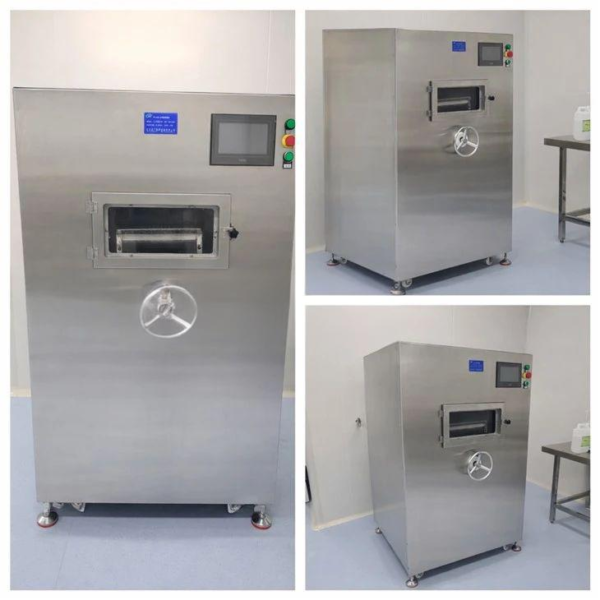

On-site Machine Photos Taken at Customer Factories
These real photos record the machine running smoothly inside customers’ production workshops. You can view the actual installation layout and working state of the Automatic Ampoule and Vial Washing Machine. The pictures offer intuitive reference for your factory layout and equipment arrangement before purchase.
Technical Parameters
All parameters support flexible adjustment to match different ampoules and vials. This washing machine delivers stable washing and spin-drying performance while keeping convenient daily operation.
|
Parameter Item
|
Specification
|
|---|---|
|
Washing and Spin-drying Capacity
|
12,000–24,000 bottles per hour (varies with bottle types)
|
|
Main Supporting Motors
|
Water pump motor, spin-drying motor, bottle rinsing motor
|
|
Applicable Bottle Height
|
30–200 mm
|
|
Total Power
|
2.3 kW, 380/220 V, three-phase four-wire, 50 Hz
|
|
Overall Dimensions
|
900 × 1000 × 1750 mm
|
|
Total Weight
|
220 kg
|
Packing and Shipping
The whole machine is packed with thick shockproof materials to prevent scratches and collision damage during long-distance transportation. Professional one-stop international logistics services ensure safe and punctual delivery to customers worldwide.
Product Summary
The AS-40D Automatic Ampoule and Vial Washing Machine is an efficient, stable and user-friendly cleaning device for the pharmaceutical industry. It supports fast tool-free size switching and delivers comprehensive, high-precision bottle cleaning. Featuring high productivity, stable operation and wide compatibility with bottle specifications, this machine is an ideal cost-effective choice for daily cleaning and small-to-medium batch production in pharmaceutical factories.
