Description
What Is an Aluminum-Plastic Blister Recovery Deblistering Machine?
This tablet deblistering machine can quickly take tablets and capsules out of bad aluminum-plastic PVC blister packs. It can process 25 to 35 blister sheets every minute. It replaces manual peeling work, cuts labor costs a lot, and raises drug recycling efficiency by over 80%. The width of the positioning baffle can be adjusted, so it fits many different sizes of pills.
How to Use the Machine
This machine is super easy to use and you do not need professional technical training. Just put the blister sheets with defective medicine neatly into the feeding inlet. After you turn on the machine, the roller group and guide plate group will automatically finish peeling, separating and collecting medicine step by step.
Core Working Principle
The whole shell of this aluminum-plastic medicine deblistering machine is made of 304 stainless steel. A tiny motor, one-stage reduction gear box, roller group and guide plate group connect the rubber stop plate one by one. The machine also has an electric brake switch and a safety lock switch.

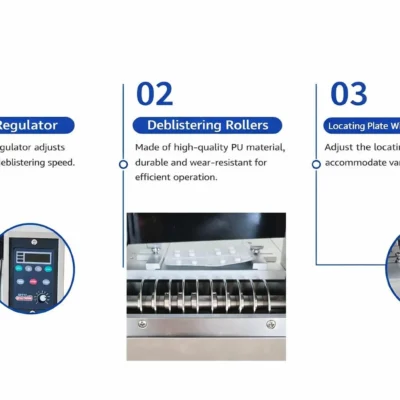

The tiny motor and reduction box drive a set of rollers. These rollers work like human hands to take medicine out. They peel the whole medicine sheet away from waste blister packaging. Then the guide plates and medicine separating rubber plates split pills and packaging waste into two separate collecting areas.
Test Video Before Shipment
Before we ship every batch of machines to customers, we record complete installation and function test videos following standard demonstration rules. We copy real factory working conditions, including the full peeling process and total material separation steps. We take real tests to check key performance points, such as positioning accuracy, stable running state and full protection of intact medicine. Strict tests make sure every machine we send meets all quality standards and can work perfectly for buyers.
Reasons for Stable Deblistering Performance
This machine uses a roller peeling structure together with a guide plate separation system. This design brings these clear advantages:
-
It stops tablets from breaking easily;
-
The peeling result stays the same every time;
-
The feeding process runs smoothly without jams;
-
It lowers mistakes made by manual operation.

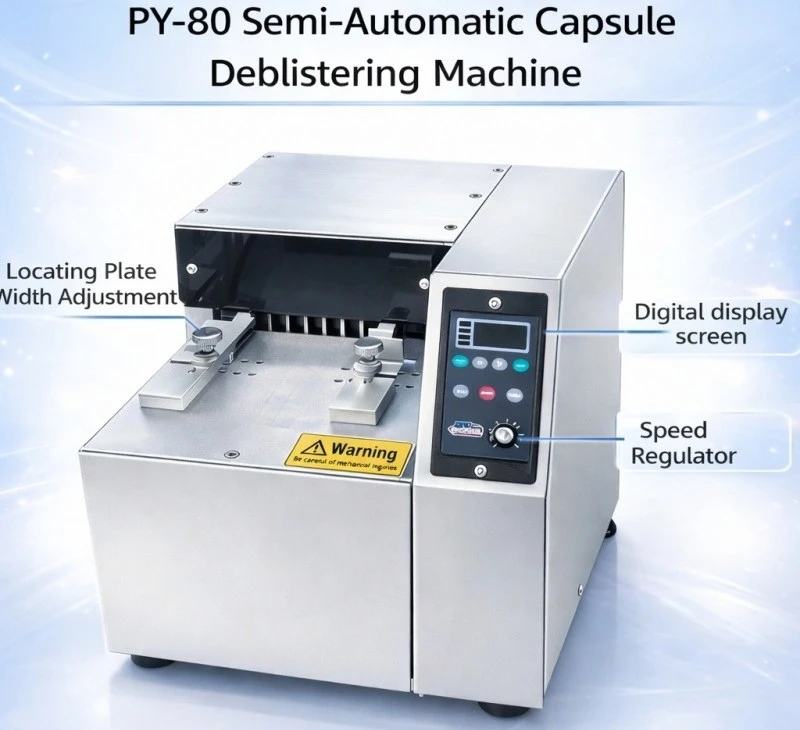

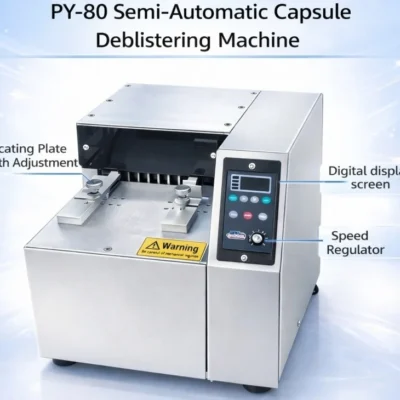

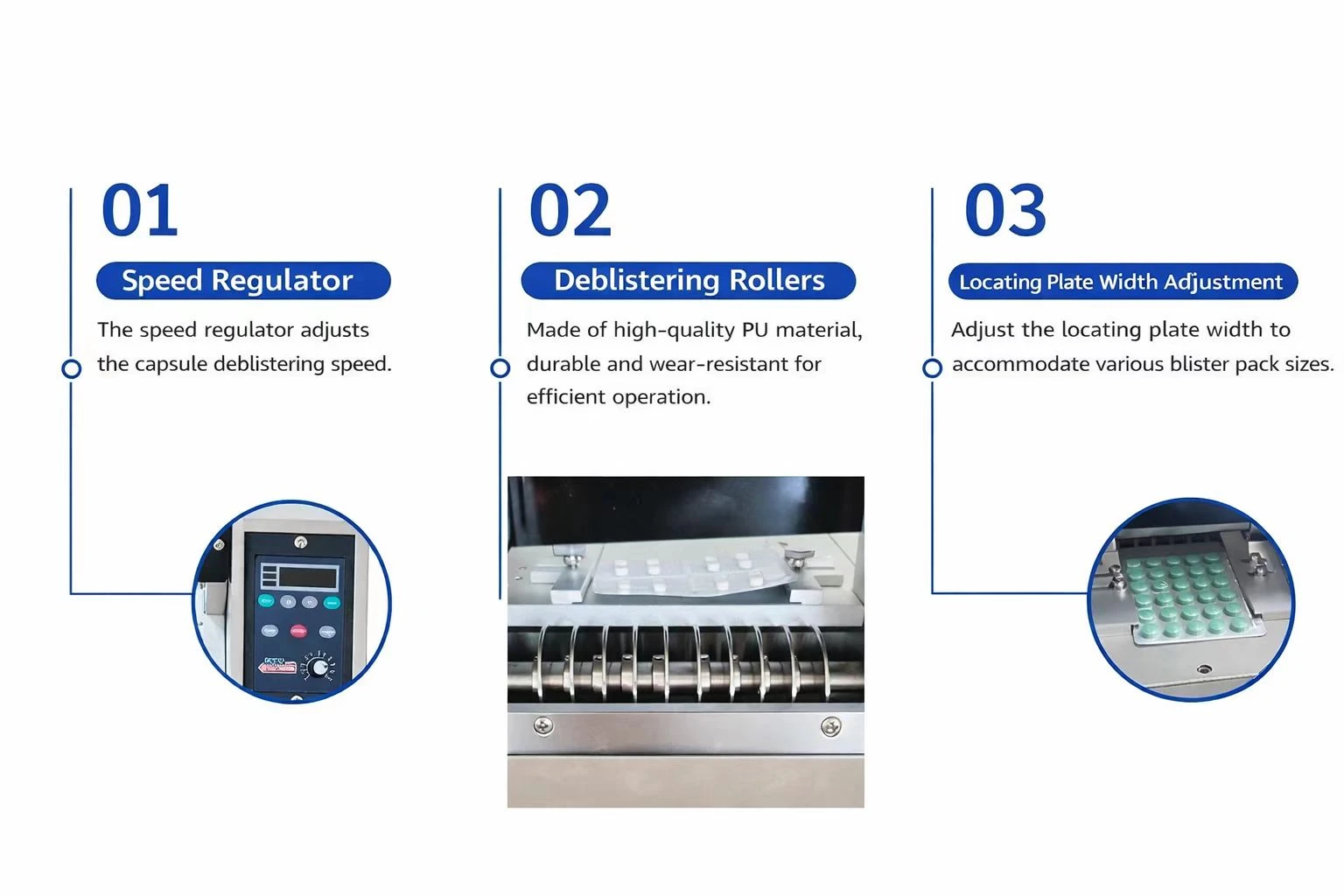

The adjustable positioning baffle fits blister sheets of different widths and matches all kinds of medicine packaging sizes. The roller pressure and guide structure can:
-
Reduce scratches on tablet surfaces;
-
Cut down powder falling off pills;
-
Keep recycled tablets whole and undamaged;
-
Protect coated tablets from breaking.
Suitable Types of Tablets
Suitable Blister Materials

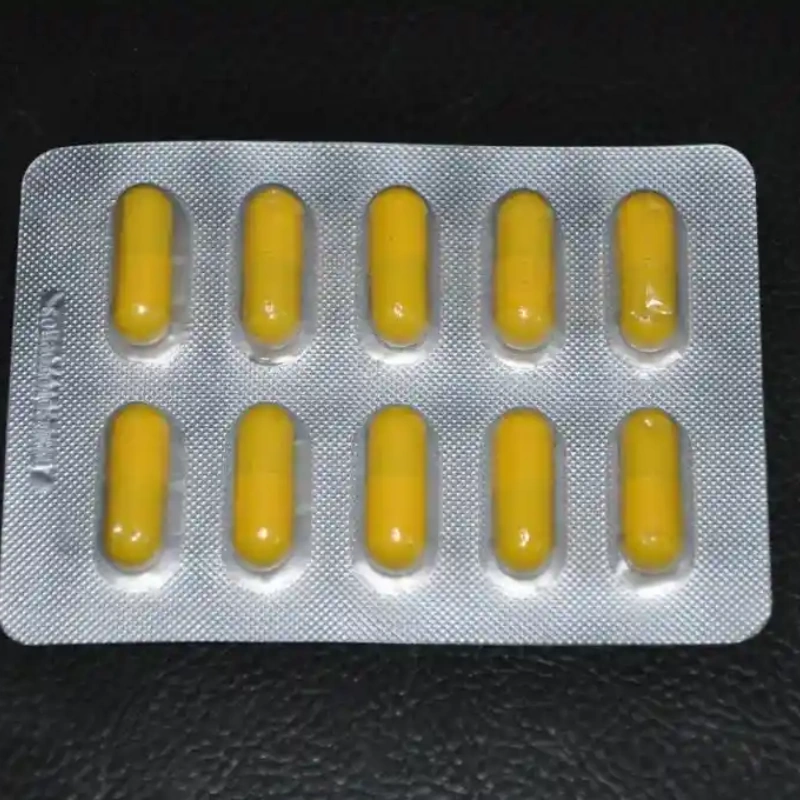

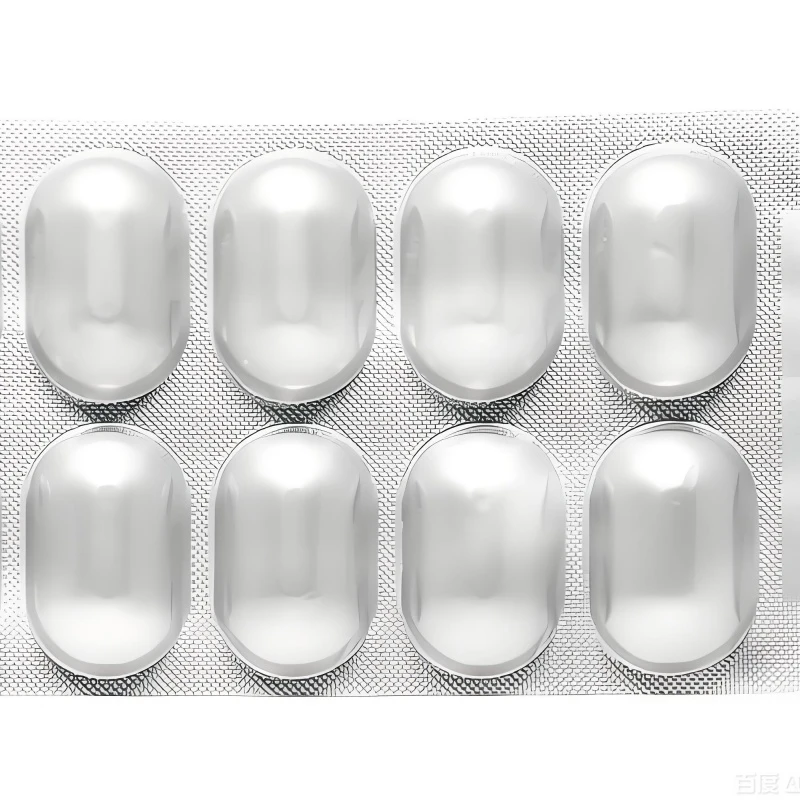

Aluminum-PVC blister packs, aluminum-aluminum blister packs, capsule blister sheets, tablet blister packaging, candy blister packaging
Suitable Product Types
Hard capsules, plain tablets, coated tablets, soft candy lozenges, herbal medicine tablets

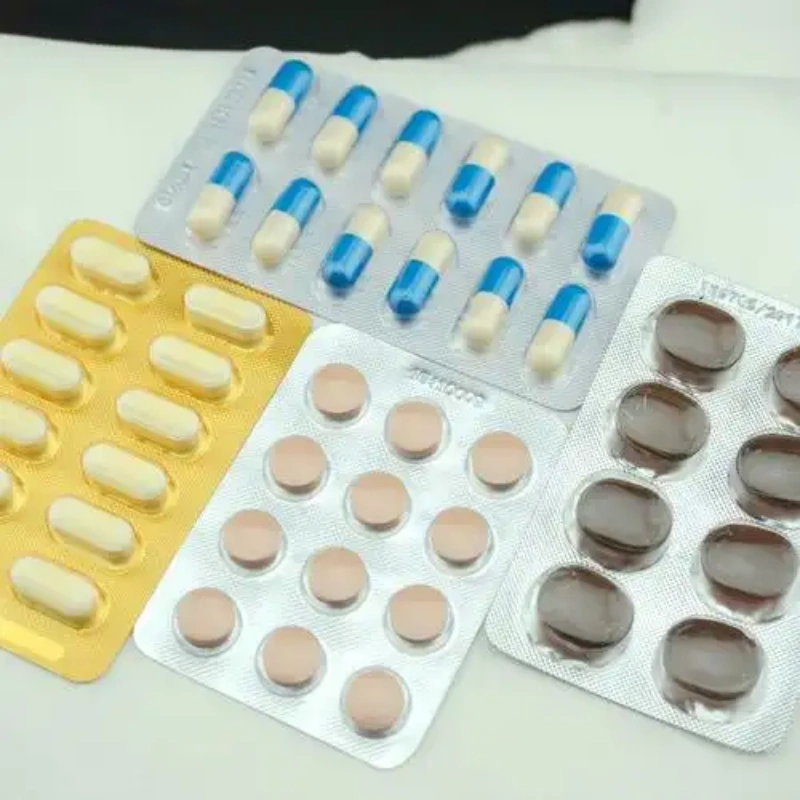

Recommended Blister Layout (for stable separation)
Tablets are placed with even space between each one; blister cavities line up neatly; blister sheets are hard enough without bending easily.
Applicable Blister Samples
All aluminum-plastic packs holding capsules, tablets, candy and other products, as long as the sheets are arranged in neat rows and columns.
Unsuitable Types of Tablets
-
Extremely soft tablets
-

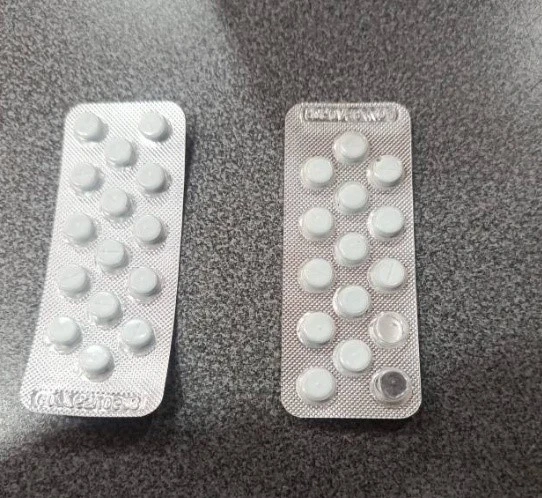

Blister sheets with messy, irregular layouts
-
Over-tight capsules that cannot slide out easily
-
Broken or deformed blister sheets

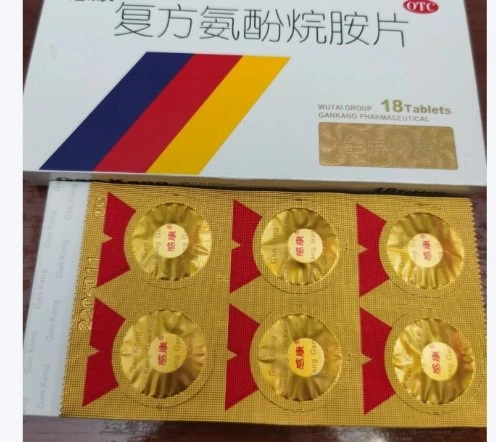

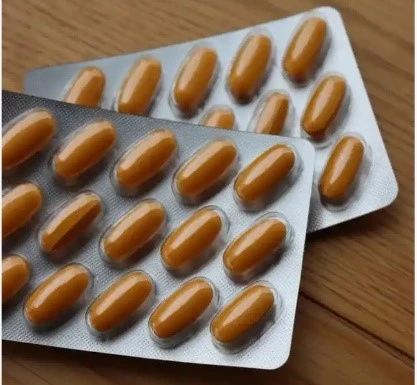

Examples of unfit materials: pills packed too close together, disordered blister arrangements, tablets with low hardness that break easily.
Applicable Scenarios
This tablet deblistering machine is specially made for pharmaceutical factories, hospital pharmacies, drug recycling companies and laboratory users. It efficiently takes intact capsules and tablets out of defective, unqualified blister packaging for reuse or testing.
Suitable users:
- pharmaceutical factories
- hospital pharmacies
- drug recycling centers
- health supplement manufacturers
- small-batch pharmaceutical workshops
- quality inspection departments
- Pharmaceutical Production
Take medicine out of wrong or defective packaging to finish quality control work.

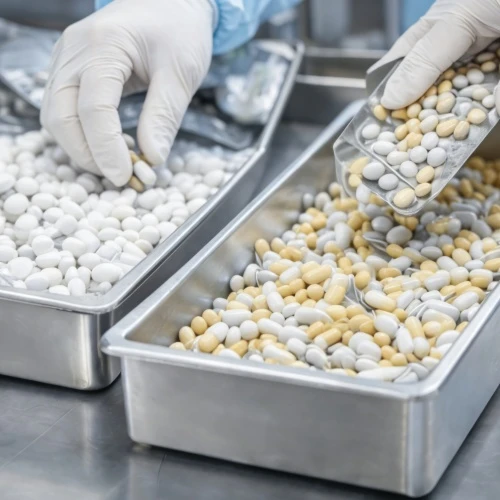

- Defective Product Handling
Separate unsellable medicine from aluminum-plastic packaging for later disposal.

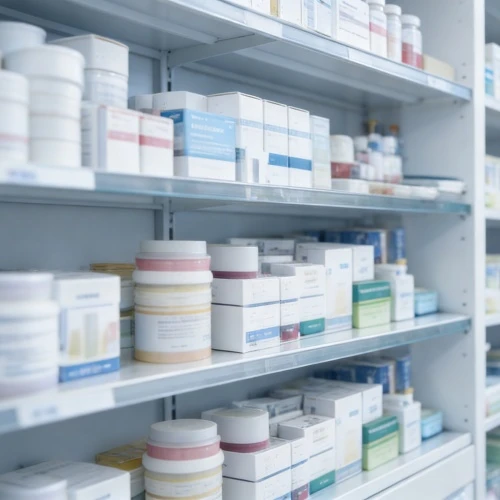

- Hospital Pharmacy
A reliable deblister machine for pharmacy use, meeting the need of customized medicine dispensing.
- Pharmaceutical Research & Development
Easily take tablets and capsules out of blister packs for various laboratory tests and experiments.
Key Attributes
| Item | Parameter |
|---|---|
| Warranty | 1 Year |
| Core components | Gearbox, motor |
| Key selling points | Easy To Operate |
| Video outgoing-inspection | Provided |
| Machinery test report | Provided |
| Capacity | 25 plates per min (marked capacity: 10) |
| Place of origin | Hunan, China |
| Weight (kg) | 16 |
| Process | Semi-automatic |
| Material | 304 Stainless Steel |
| Voltage | 110-240V |

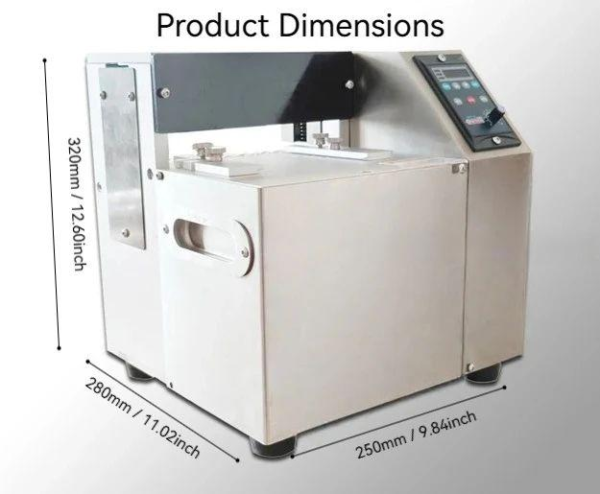

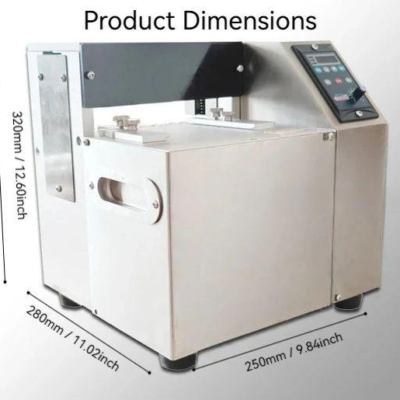

| Applicable Size | 50–170 × 35–140 mm |
FAQ
-
What about the quality of your machines? Our factory has more than 10 years of mechanical processing experience. Our machines are exported to many countries and regions, and we have won good praise from customers all over the world.
-
What is the price of this machine?
Anytime we will make quality as factory life, no matter price is good or not for us.
Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
-
How do you guarantee machine quality after we place an order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us
to have the quality checking by yourself, or by the third party inspection organization
contacted by your side.
-
What installation guidance and after-sales services do you offer for this machine?
(1).Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
(2).We already prepare technical manual and operation video to show our customers,
then it will be easy to install and use the machine.
(3).It is free to train your worker in our factory or in your side by video.
Comparison of Deblistering Machine
| Comparison Item | PY-80 | PY-120 | PY-120A |
| Working Mode | Semi-automatic | Fully automatic | Fully automatic |
| Counting Method | Manual counting | Manual counting | Manual counting |
| Processing Capacity | 25–35 sheets/min | 50–65 sheets/min | 80–95 sheets/min |
| Application Range | Capsules, plain tablets, soft capsules, candy and all aluminum-plastic & aluminum-aluminum packaging sheets | Capsules, plain tablets, soft capsules, candy and all aluminum-plastic & aluminum-aluminum packaging sheets | Capsules, plain tablets, soft capsules, candy and all aluminum-plastic & aluminum-aluminum packaging sheets |
| Required Blister Layout | Pills arranged neatly in horizontal and vertical lines | Pills arranged neatly in horizontal and vertical lines | Pills arranged neatly in horizontal and vertical lines |
| Power Supply | AC 220V, 50–60Hz | AC 220V, 50–60Hz | AC 220V, 50–60Hz |
| Rated Power | 60W | 180W | 180W |
| Machine Weight | 18 kg | 25 kg | 35 kg |
| Overall Size | 285290285 mm | 350380510 mm | 400400950 mm |
| Body Material | 304 stainless steel | 304 stainless steel | 304 stainless steel |
Packing and Shipping
We wrap every machine with professional shockproof packing materials. Standard packing can stop machines from scratches, bumps and deformation during long-distance transport. We cooperate with stable global logistics teams. They can deliver all machines safely and on time to customers all over the world.
Product Summary
This semi-automatic capsule and tablet deblistering machine is a practical 304 stainless steel device designed to recover intact medicines from defective aluminum-plastic blister packs. It features easy operation without complicated training, and the adjustable baffle fits most common blister sizes. The roller peeling structure effectively reduces tablet breakage and powder loss. Three different models cover low, medium and high processing speeds to satisfy the demands of laboratories, hospital pharmacies and pharmaceutical workshops. Equipped with a one-year warranty and complete inspection documents, this deblistering machine is a cost-effective choice for drug recycling, quality inspection and pharmaceutical research.
