Description
Scope of Application

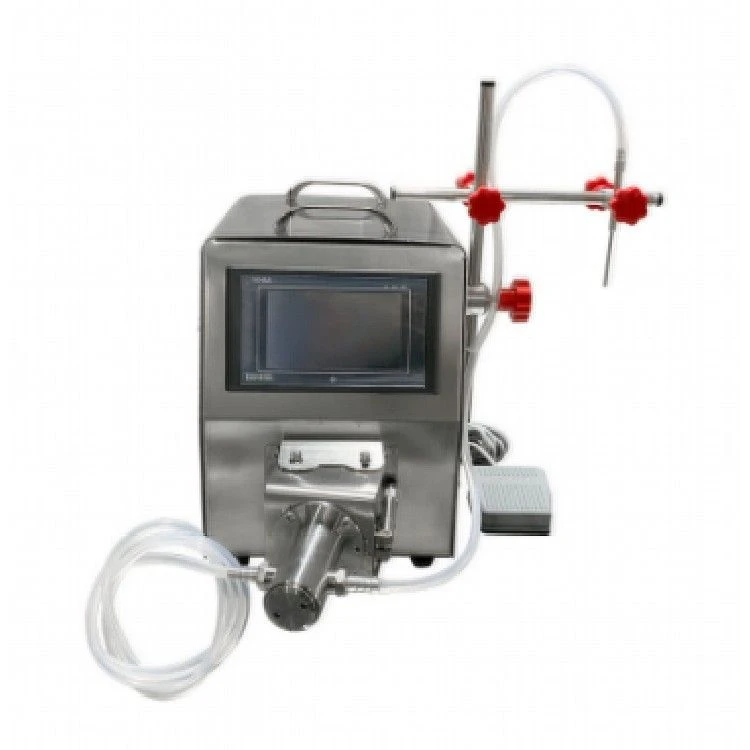

Eye Drop Filling Machine is a professional automatic filling device. This equipment is widely used in pharmaceutical, food, chemical and cosmetic industries. It is easy to operate, runs stably and works fast. It can complete high-precision filling work and has strong practicability for daily production. Adopting mature and reliable production technology, this machine can adapt to the filling work of various liquid materials. It effectively reduces manual operation errors, improves overall production efficiency, and ensures standardized and hygienic production standards, which is deeply favored by major processing factories.
Product Features
The following items describe key performance advantages of the Eye Drop Filling Machine for actual workshop production. These practical features make the Eye Drop Filling Machine well‑suited for various liquid filling tasks on‑site.
- It fully meets the highest hygiene standards of biopharmaceutical, food and cosmetic industries. It adopts clean and safe manufacturing materials and exquisite sealing technology, effectively avoiding liquid contamination and ensuring sterile and qualified production environments.
- It has stable chemical properties and strong inertia. It can resist corrosion, acid, alkali and high temperature. This fine material performance prevents chemical reactions with filled liquids and extends the service life of core machine parts.
- It has an extremely small thermal expansion coefficient. The piston fits perfectly with the cylinder, which greatly improves the filling accuracy. It will not deform or loose tightness under different working temperatures, ensuring consistent and precise filling results in long-term continuous operation.
- The machine body is super hard and wear-resistant. It produces almost no tiny particles during operation and has a long service life. It can adapt to long-term uninterrupted industrial operation, effectively reducing equipment wear and maintenance costs for factory production.
Technical Parameters
The table below shows main working indexes of the Eye Drop Filling Machine for reference during equipment selection and daily operation. All listed data reflect the real‑running performance of the Eye Drop Filling Machine under normal workshop working conditions.
|
Item
|
Specification
|
|---|---|
|
Suggested Filling Range
|
0.2‑5 ML
|
|
Output per Revolution
|
0.2‑2.8 ML
|
|
Filling Accuracy
|
±1%
|
|
Power-off Memory Function
|
Yes
|
|
Discharge Anti-leakage Function
|
Yes
|
|
Power
|
120W
|
|
Working Voltage
|
110V‑220V
|
|
Machine Size
|
470*290*330mm
|
|
Machine Weight
|
10KG
|
Working Principle

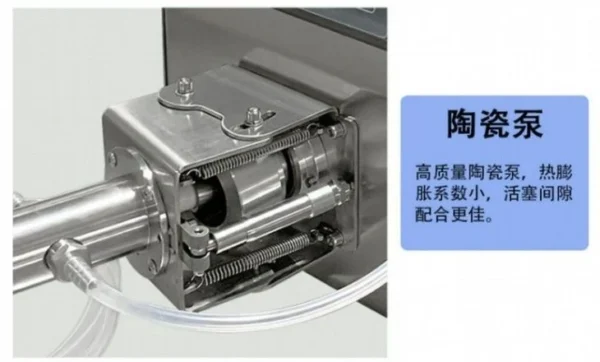

This equipment uses a ceramic plunger pump based on the eccentric wheel principle. The eccentric wheel pushes the ceramic plunger to move linearly inside the cylinder. This design helps the machine finish liquid filling and discharging without installing any valve. The internal ball can rotate 360 degrees freely. The motor drives the ceramic plunger to rotate steadily in the cylinder through angular support bearings.
Device Advantages
The pump body adopts high-density ceramic material with a smooth surface, so it keeps high filling accuracy all the time. The pump shell is made of 316L stainless steel, which meets strict pharmaceutical and biological production standards. This machine uses a special valveless design, and the continuous rotation of the plunger completes the whole filling process. Users can easily adjust the filling volume through the PLC system instead of traditional screw adjustment.
Summary
Eye Drop Filling Machine belongs to a kind of automatic liquid‑filling processing equipment. This filling machine features high precision, stable performance and simple operation. It supports convenient parameter adjustment and safe operation, making it a practical and reliable device for pharmaceutical, food and cosmetic production. It can handle various liquid raw materials effectively. Meanwhile, it follows strict sanitary requirements, helps factories cut manual costs and improves the overall production efficiency of assembly lines.
