Description
Working Principle
The YHR-360 Liquid Dispenser Filling Machine operates based on the peristaltic pump mechanism. Rollers squeeze and release flexible tubing in sequence. This movement creates negative pressure and pushes liquid forward.
The working logic is easy to understand. It acts just like squeezing a liquid-filled tube by hand. Liquid moves forward as the squeezing point shifts along the tube.
-
Liquid never contacts the pump body
-
No extra valves are required
-
Wear of mechanical seals is kept to a minimum
Suitable Products
This filling machine adapts to various liquid materials, including pharmaceutical solvents, oral liquids, disinfectants and liquid reagents. It supports filling for bottles, cans and other containers and meets diversified production demands.
Low-Viscosity Oils
Free-Flowing Liquids
Pharmaceutical Liquids
Chemical & Industrial Liquids
Acidic & Alkaline Solutions
Technical Specifications
Different models cover micro, medium and large flow filling demands. All machines feature stable metering and flexible adjustment to fit diverse liquid materials and production scenarios.
| Parameter Item | YHR-360 |
| Model | YHR-360 |
| Filling Method | Electric Self-Priming |
| Power Supply | 110V / 220V, 50Hz |
| Filling Nozzle Diameter | 4.8 mm |
| Power | 30 W |
| Flow Rate | 1–260 ml/min |
| Speed Range | 1–99 levels |
| Net Weight | Approx. 2 kg |
| Dimensions | 230 × 210 × 170 mm |
| Filling Accuracy | ±1% |
| Optimal Filling Range | 10–50 ml |

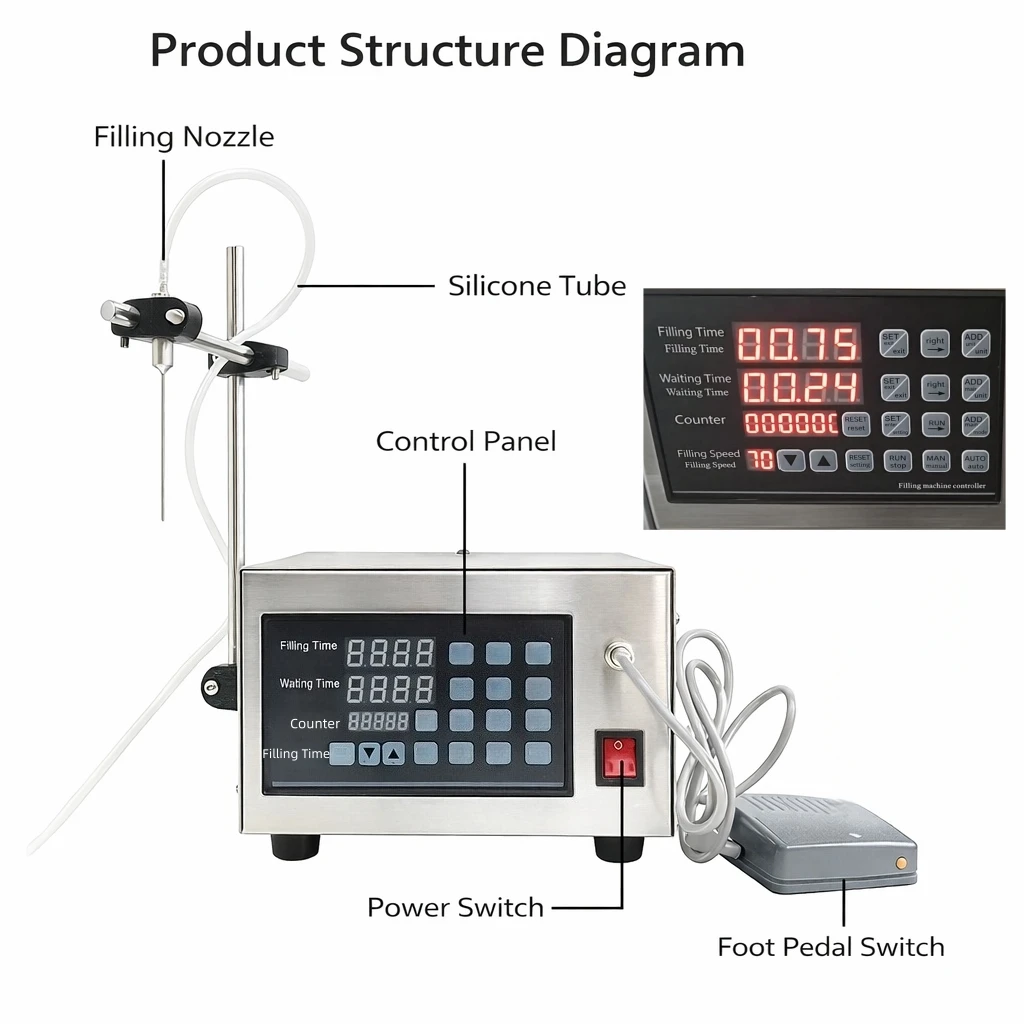

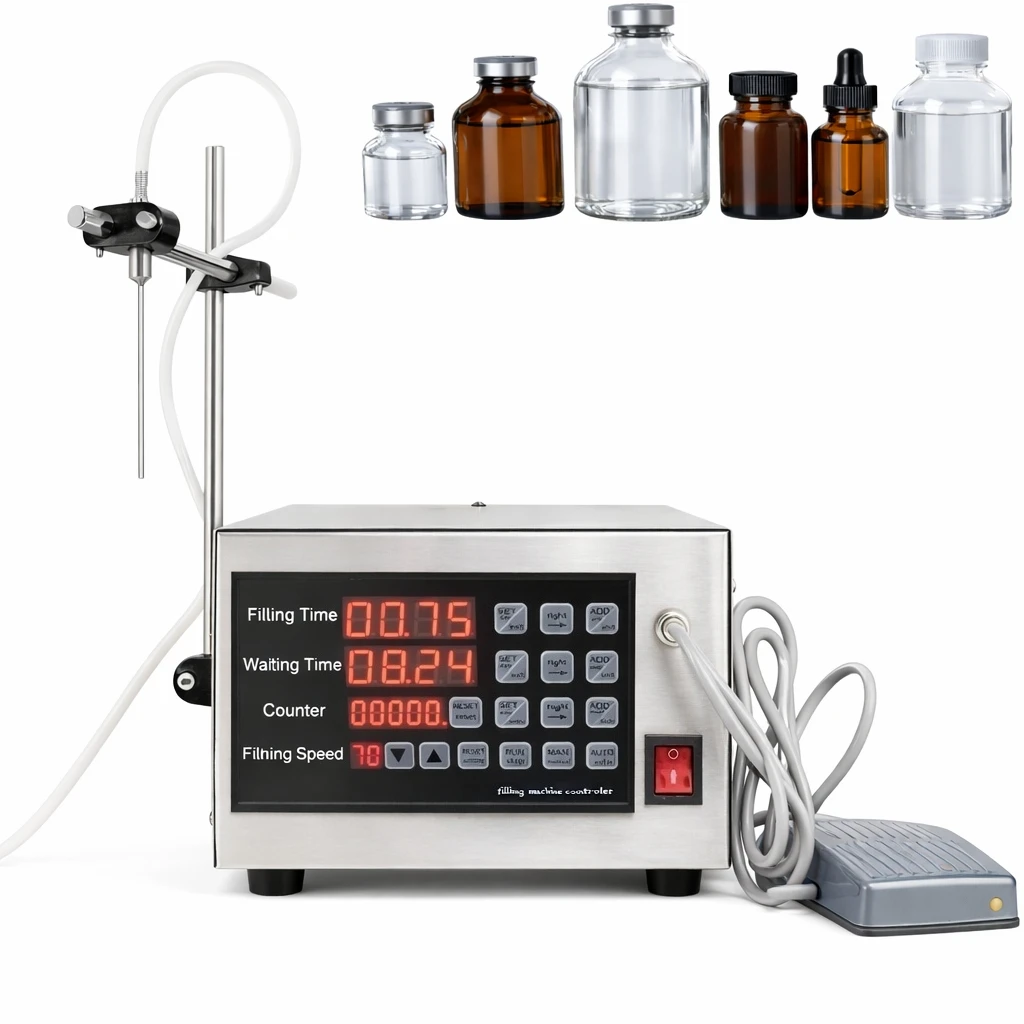

Standard Configuration of YHR-360 High-Flow Peristaltic Pump Filling Machine
The machine adopts premium peristaltic pump as the core filling unit. Equipped with touch screen control system and adjustable conveying structure, it ensures stable high-flow filling and easy daily maintenance.
- 1 main unit
- 1 power cord
- 1 316L stainless steel filling needle
- 1 plastic outlet nozzle
- 1 foot pedal switch.
Filling Machine Model Comparison
Our filling machine series includes three classic models to match different production needs. The YHR-360 supports large-flow filling for common and corrosive liquids, the YH-320 focuses on medium-flow and high-precision quantitative filling, and the YHR-50 is designed for small-flow and micro-volume laboratory filling. Users can select the optimal model according to their actual material properties and filling volume requirements.
| Item | YHR-360 High-Flow Peristaltic Pump Filling Machine | YH-320 Desktop Quantitative Filling Machine | YHR-50 Peristaltic Pump Filling Machine |
| Model | YHR-360 | YH-320 | YHR-50 |
| Filling Method | Electric Self-Priming | Electric Self-Priming | Electric Self-Priming |
| Power Supply | 110V / 220V 50Hz | AC220V ±10% 50Hz | 110V / 220V 50Hz |
| Power | 30W | 30W | 20W |
| Nozzle Diameter | 4.8 mm | 8 mm | 4.8 mm |
| Flow Range | Max 260 ml/min | Max. 3.2 L/min | 1 – 50 ml/min |
| Speed Levels | 1 – 99 | 1 – 99 | 1 – 99 |
| Machine Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Machine Weight | Approx. 2 kg | Approx. 2 kg | Approx. 2 kg |
| Machine Size | 230 × 210 × 170 mm | 230 × 210 × 170 mm | 230 × 210 × 170 mm |
Model Application Guide
| Model | Suitable For |
|---|---|
| YHR-360 | Large-flow filling such as essential oils, liquids, corrosive fluids |
| YH-320 | Medium-flow and high-precision quantitative filling |
| YHR-50 | Small-flow, laboratory or micro-volume filling |
