Description

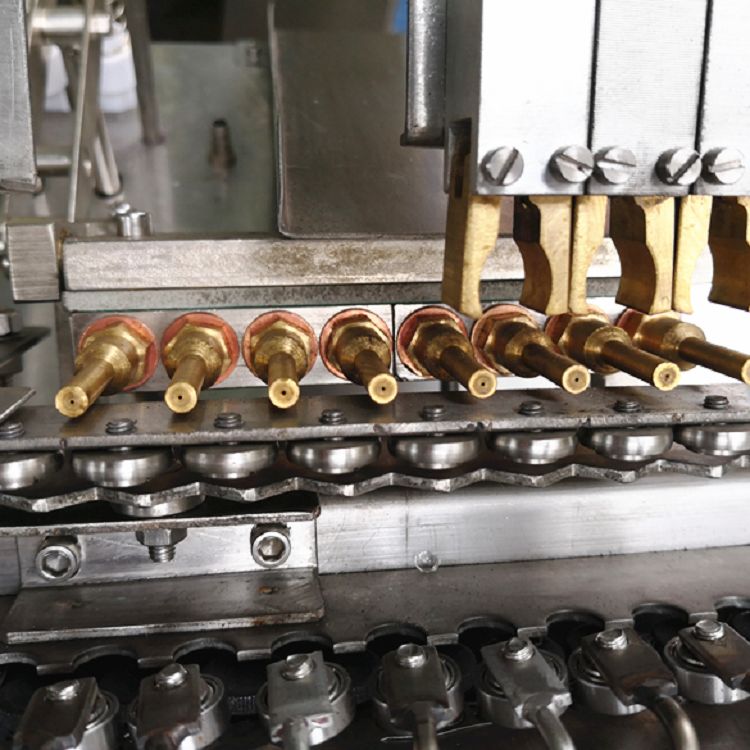

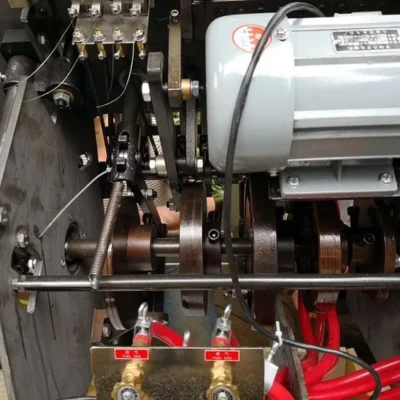

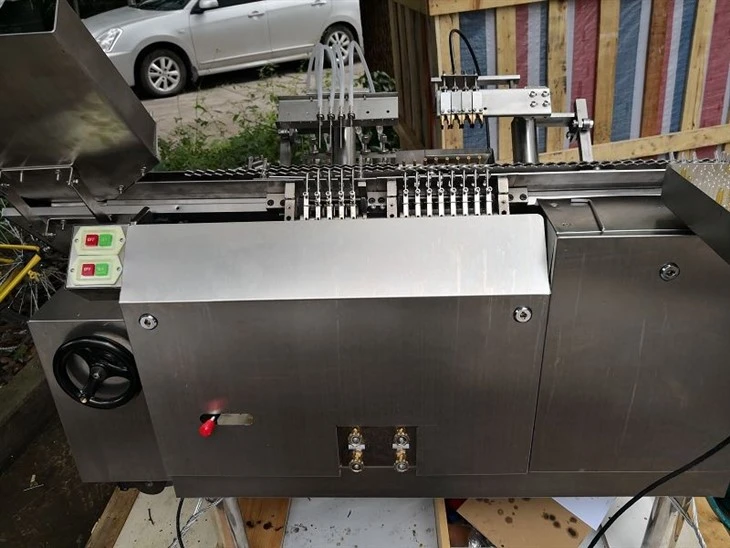

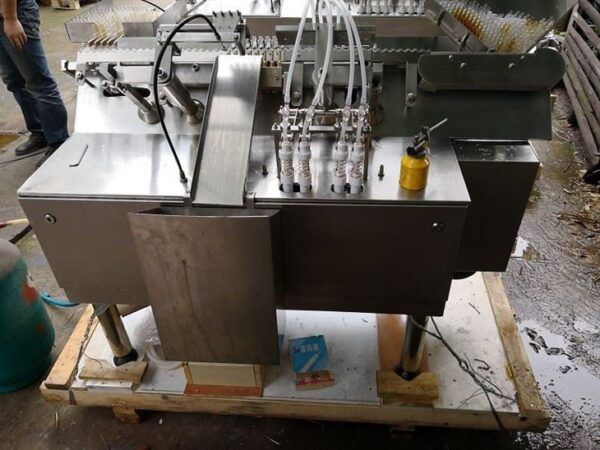

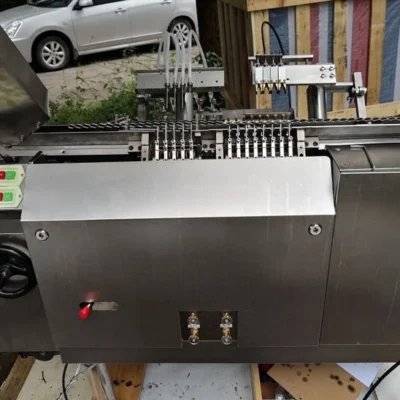

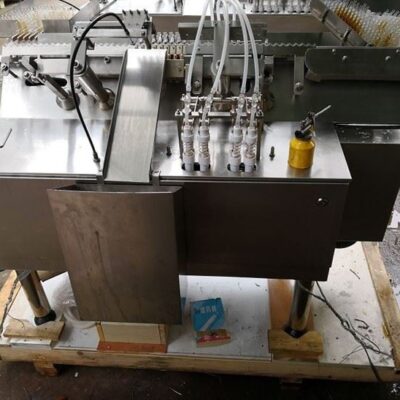

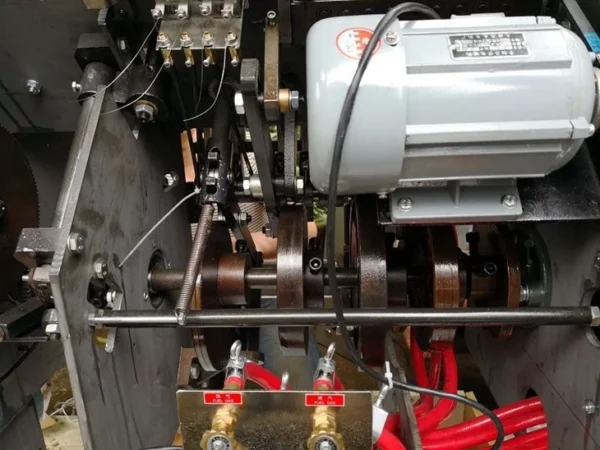

This Monoblock Machine works for ampoule filling and wire‑drawing sealing in pharmaceutical factories. It uses a four‑station drive system. It handles four bottles as one group and sends them to each working position. It finishes bottle feeding, flame opening, filling, preheating, wire‑drawing sealing and other processes. You can use liquefied petroleum gas, city gas or acetylene as fuel.
Product Characteristics

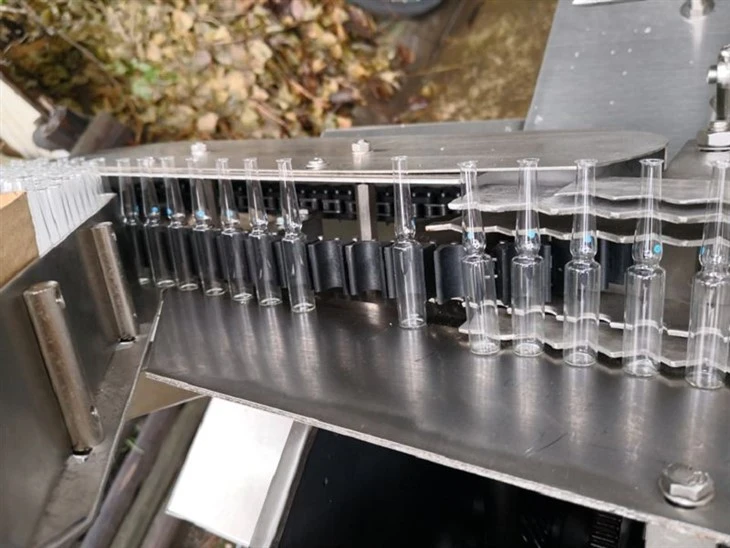

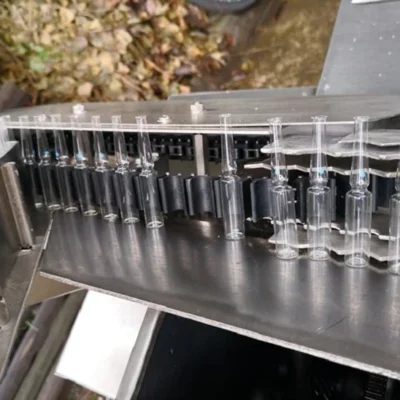

This is a new‑generation Monoblock Machine, single‑unit multi‑needle wire‑drawing filling and sealing machine. It adopts rectangular bottle feeding design. Ampoule bottles move more steadily and the bottle‑breaking rate becomes lower. The hopper fits a new clutch device. It stops ampoule delivery when the machine pauses, so it cuts ampoule waste.
The liquid cutoff system uses mechanical control with high reliability. The bottle‑out structure gives up the old bottle‑feeding style. It arranges bottles in a better way and raises finished‑product yield.
Technical Parameters
The following are the complete and standard technical parameters of the AGL 1‑2ml Four‑Needle Monoblock Machine ampoule filling and sealing machine. All data support actual production operation and equipment matching, ensuring stable and efficient production performance.
|
Parameter Item
|
Specification
|
|---|---|
|
Model
|
AGL 1‑2ml Four‑Needle
|
|
Production capacity
|
6000‑8000 PCS/hour
|
|
Total motor power
|
0.55KW
|
|
Weight
|
300Kg
|
|
Dimension
|
1300×700×1350mm
|
|
Fuel consumption
|
Pipeline gas: 2‑2.5 m³/h; LPG: 0.08‑0.1 pa/h
|
|
Oxygen consumption
|
0.7 pa/h
|
Summary
The AGL 1‑2ml Four‑Needle Monoblock Machine ampoule filling and wire‑drawing sealing machine features stable operation and low breakage rate. It completes full ampoule processing procedures with high yield, suitable for pharmaceutical factory production.
