Oxyhydrogen Flame Ampoule Sealing Machine
The OHYH-200A Hydrogen Oxygen Flame Ampoule Sealing Machine is a compact, safe and highly efficient Ampoule Sealing Machine with steady gas supply and easy daily operation. With stable flame performance and complete supporting configurations, this practical Ampoule Sealing Machine brings consistent sealing results every time, so it is an ideal choice for laboratory research and small-batch ampoule sealing production in pharmaceutical and chemical fields.
Send your requirements, we will quote for you within 12 hours
Description
OHYH-200A Hydrogen Oxygen Flame Ampoule Sealing Machine
The OHYH-200A Hydrogen Oxygen Flame Ampoule Sealing Machine is specially developed for sealing 1–20 ml glass ampoules. It is widely used in the pharmaceutical and chemical industries. The machine produces hydrogen and oxygen gas through electrolysis. The mixed gas forms clean and stable flame, which melts and seals the tip of glass ampoules perfectly.
Compared with traditional gas sealing equipment, this hydrogen oxygen sealing machine provides more uniform flame. It makes the ampoule neck smoother after sealing. The whole sealing quality is more consistent, and the working efficiency is greatly improved.
Featuring compact structure, stable flame output and high operation safety, this machine is suitable for laboratory sealing work, small-batch pharmaceutical production, hospital preparation rooms and various scientific research institutions.
Standard Configuration
All matched parts below are delivered together with the Ampoule Sealing Machine for immediate use:

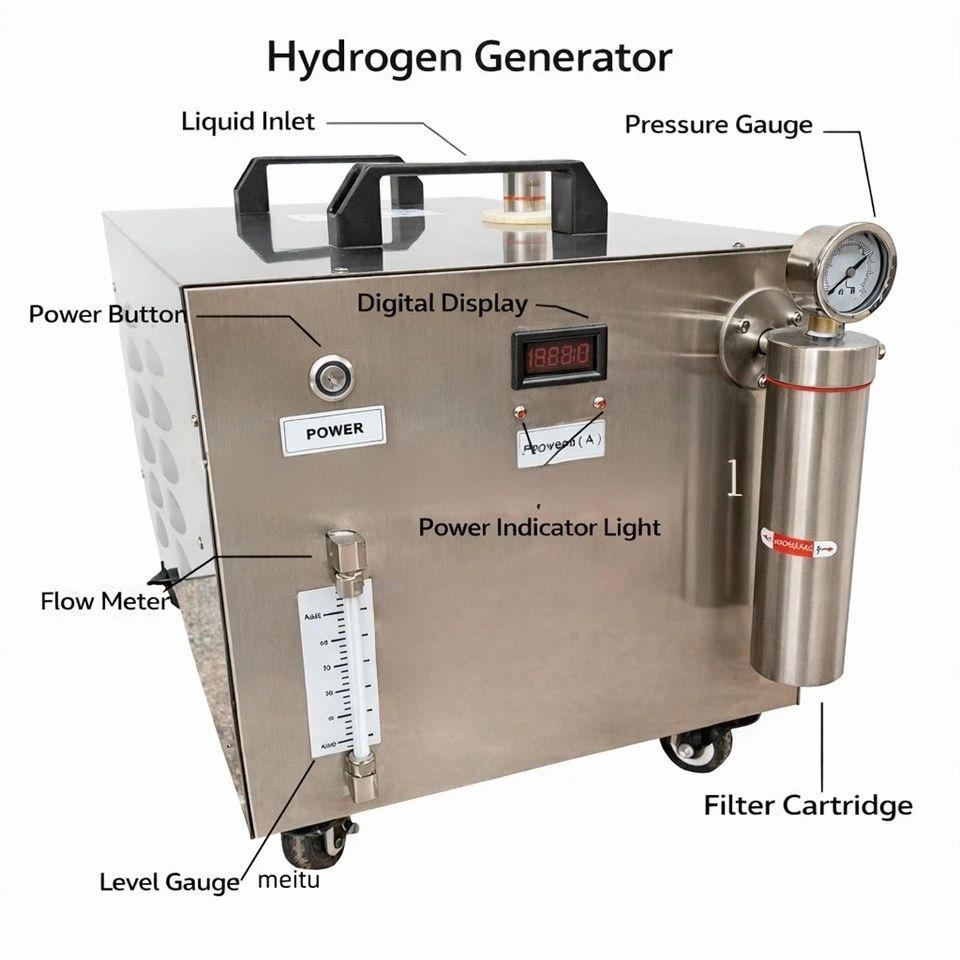

- 1 set of main machine (Hydrogen Oxygen Generator)
- 1 piece of stainless steel tweezers
- 1 copy of operation manual
- 1 piece of ampoule sealing base
- 1 piece of dry flame arrester
- Several hard rubber tubes
- 1 piece of three-way connector
- 1 pair of ampoule sealing torches
- 2 bottles of 500g electrolyte powder
The complete accessories form a full set of hydrogen oxygen flame ampoule sealing system that supports smooth operation of the Ampoule Sealing Machine. It fully meets the use needs of laboratory experiments, pharmaceutical preparation rooms and small-scale ampoule production.
Technical Specifications
All data below show the standard running parameters of this Ampoule Sealing Machine
|
Item
|
Specification
|
|---|---|
|
Power
|
1000 W
|
|
Gas Output
|
260 L/H
|
|
Operating Voltage
|
220 V
|
|
Operating Current
|
120 A
|
|
Operating Pressure
|
0.08–0.15 MPa
|
|
Soft Water Consumption
|
0.06 L/H
|
|
Weight
|
48 kg
|
|
Overall Dimensions
|
550×330×450 mm
|
Packing and Shipping
We wrap the whole machine with thick shock-resistant protective materials to avoid scratches and collision damage during long-distance sea and land transport across different countries. We provide full one-stop international logistics services to deliver all sets of equipment safely and punctually to customers worldwide.
Product Summary
The OHYH-200A Hydrogen Oxygen Flame Ampoule Sealing Machine is a compact, safe and highly efficient Ampoule Sealing Machine with steady gas supply and easy daily operation. With stable flame performance and complete supporting configurations, this practical Ampoule Sealing Machine brings consistent sealing results every time, so it is an ideal choice for laboratory research and small-batch ampoule sealing production in pharmaceutical and chemical fields.
