Description

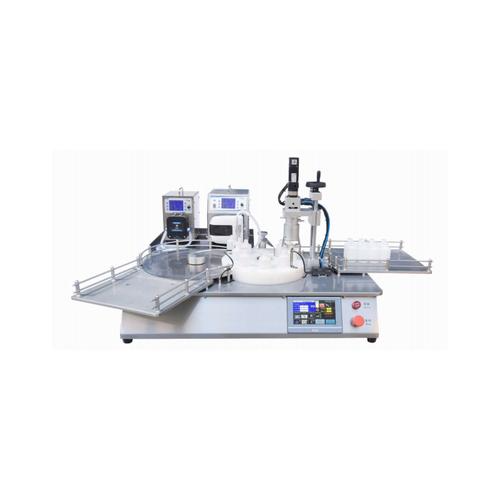

The YHGZ-20 desktop equipment integrates filling, capping and Stoppering Machine functions, specially designed for clean, accurate and efficient liquid packaging in various industries. It solves the common problems of large equipment volume, complicated operation and low precision, and is an ideal semi-automatic device for laboratory research and small-batch production.
Scope of Application
The YHGZ-20 desktop vial filling and capping machine is widely used in pharmaceutical, biological, beauty and chemical industries. It perfectly adapts to laboratory experiments and small-batch product production scenarios.
Product Features
This machine adopts a desktop integrated design with a small and compact size. It is equipped with a PLC control system, which greatly reduces daily parameter adjustment and operation difficulty. Operators only need to place empty bottles manually and send them to the filling station to start work, and it can work well with the supporting Stoppering Machine for complete‑process bottle processing.
The whole machine uses high-quality electric control and pneumatic components from well-known brands. It matches a high-precision ceramic pump that features strong corrosion resistance, easy disassembly and cleaning, and long service life.
The machine supports two practical functions: no bottle no filling and automatic anti-dripping, which effectively avoid material waste and pollution.

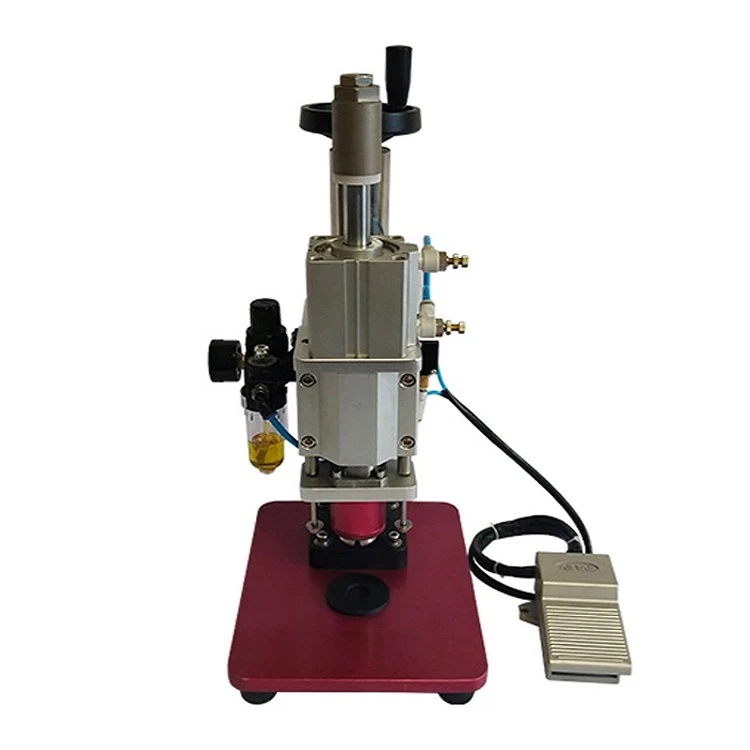

The upgraded capping system can prevent bottle explosion during operation and will not produce debris, ensuring safe and clean production.
Technical Parameters
The following clear and standardized technical parameters show the specific working performance, applicable specifications and operating conditions of the YHGZ-20 desktop vial filling and capping machine and supporting Stoppering Machine, which helps users quickly confirm whether the machine meets their production needs.
|
Parameter Item
|
Specific Specification
|
|---|---|
|
Number of capping heads
|
Single head
|
|
Applicable bottle types
|
Vials, oral liquid bottles
|
|
Applicable bottle caps
|
Aluminum-plastic caps, pure aluminum caps
|
|
Applicable bottle height
|
≤100mm
|
|
Filling accuracy
|
≤±0.25%
|
|
Filling volume
|
0.2-6ml / 1-12ml / 2-25ml
|
|
Capping diameter
|
13mm / 15mm / 20mm
|
|
Production capacity
|
10-20 bottles per minute
|
|
Working voltage
|
220V, 50Hz
|
|
Working air pressure
|
≤0.6MPa
|
|
Rated power
|
600W
|
|
Machine weight
|
60kg
|
|
Overall dimension
|
1230×780×600mm
|
Product Advantages
We have focused on the research and development and production of filling and capping equipment for 20 years. We have accumulated mature and rich technical experience, so we can quickly provide customers with professional and complete production solutions.
After manual bottle alignment, the machine can automatically and neatly transport bottles to the turntable workstation, realizing standardized and orderly semi-automatic production. All core electric control parts adopt international famous brands including Keyence, Schneider, Omron and Panasonic. Pneumatic components select high-quality brands such as CKD, SMC and Yaskawa. These premium accessories ensure stable machine performance and long-term trouble-free operation.

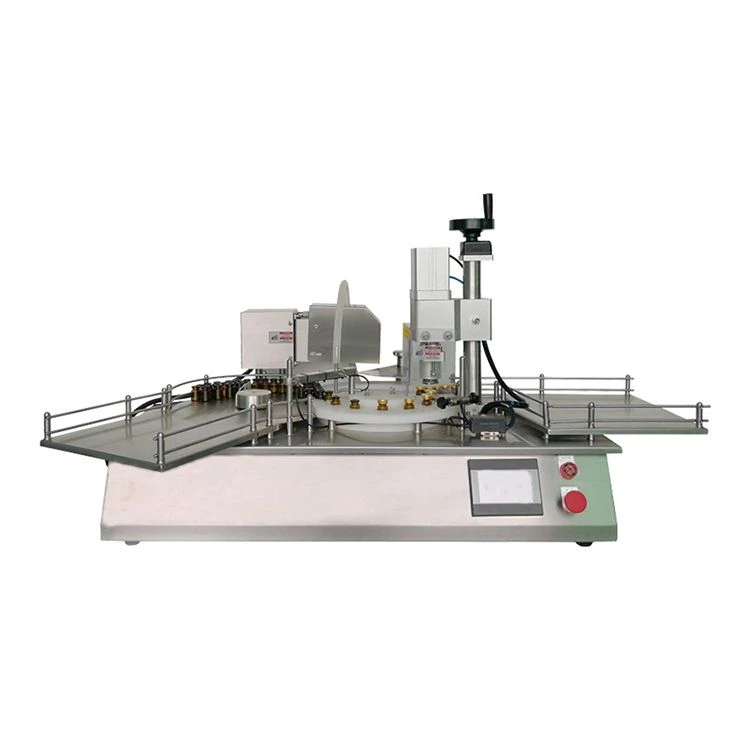

This machine is equipped with a high‑purity corrosion‑resistant valveless ceramic pump. It delivers high filling accuracy, long service life, and super easy disassembly and cleaning. The operating interface is simple and intuitive, with stable operation and reliable quality. It adopts 304 high‑precision grinding filling heads to realize accurate quantitative filling. The finely crafted capping head is durable. The matching starting device makes the capping process more stable and the sensor induction more sensitive, and it can perfectly cooperate with the Stoppering Machine to finish full bottle‑sealing workflows.
Product Summary
The YHGZ-20 desktop vial filling and capping machine is a practical, stable and high-precision small filling and capping device. It features small footprint, simple operation, high filling accuracy and safe operation. With high-quality brand accessories and mature structural design, it can stably complete filling and capping work for vials and oral liquid bottles.It is very suitable for laboratory research, trial production and small-batch mass production in multiple industries, and is an ideal auxiliary equipment for small-scale liquid packaging production.
