Description

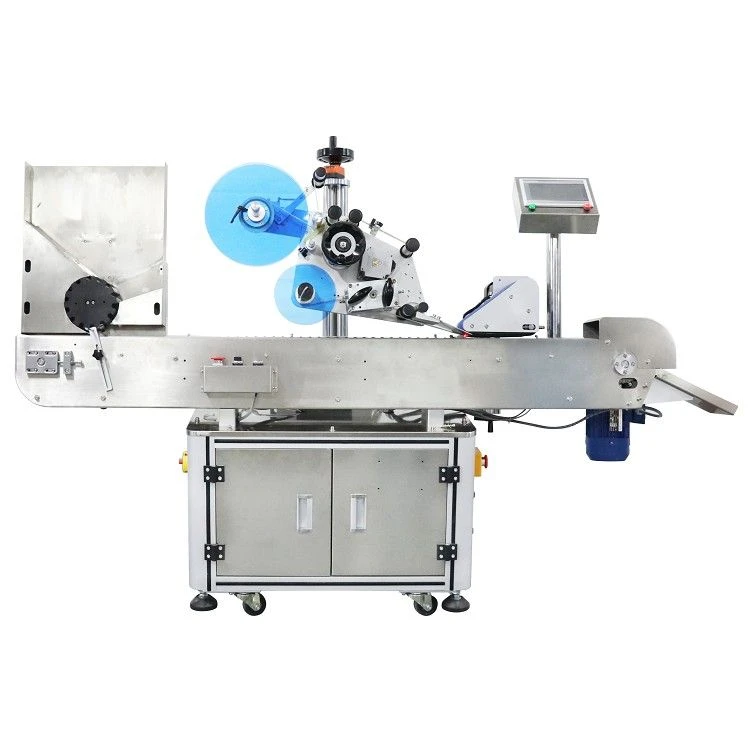

◆This practical Bottle Labeling Machine completes full‑circle and half‑circle labeling for unstable cylindrical items. It uses horizontal feeding and horizontal labeling for real‑world production tasks. This thoughtful design boosts stability and labeling efficiency in your daily labeling operations.
◆You can fit a coding machine or inkjet machine onto the labeling head. It prints production dates, batch numbers and barcodes on labels.
◆You can also add a printer to the conveyor belt. It prints production dates, batch numbers, barcodes and other information on products before or after labeling.
Scope of Application
●Suitable labels: self‑adhesive labels, non‑sticky films, electronic supervision codes, barcodes and so on.
●Suitable products: small‑sized goods that need labels or films on round surfaces or small conical surfaces.
●Applicable industries: medicine, cosmetics, electronics, hardware, plastic products and many other industries.
●Application examples: labeling solid glue bottles, oral liquid bottles, pen sticks, lipstick tubes and more.
Working Process
- Core Working Principle
An automatic bottle‑separating wheel separates products and sends them to the conveyor belt. A sensor catches passing products during transport and sends signals to the labeling control system. The control system runs the matching motor at the right time. The motor pushes out labels and sticks them onto target products.
- Operation Process
Put products into the feeding box → Separate products and spread them among conveyor chain rollers → Transport products → Detect products → Send out labels and finish labeling → Collect finished labeled products.
Technical Parameters
This advanced Bottle Labeling Machine has complete and standard production data. These are parameters for the standard model. We make custom changes for your special requirements and extra functions.
| Parameter | Details |
|---|---|
| Labeling accuracy | ±1 mm (errors from products and labels themselves are not included) |
| Labeling speed | 100‑300 pieces per minute (changes with product size) |
| Applicable product diameter | φ10 mm ~ φ30 mm |
| Applicable label size | Length: 20 mm‑250 mm; Width: 20 mm‑110 mm |
| Power supply | 220V / 50HZ |
| Machine weight | About 200 kg |
| Label roll inner‑core diameter | φ76 mm |
| Max label roll outer diameter | φ300 mm |
| Working voltage | 220V |
| Power | 940 W |
Functional Features
◆It works at high speed. It adopts side horizontal roller feeding parts and tilted conveyor chains. Bottles align automatically for stable feeding and labeling. Its top speed reaches 300 bottles per minute and saves much labor and material cost.
◆It keeps bottle breakage very low. Flexible bottle‑separating parts and flexible labeling units create smooth bottle movement. Its bottle‑break rate is lower than 1 out of 100 000.
◆It delivers excellent labeling results. Tape winding and correction technology creates high overlap between label ends. Roll‑on labeling gives flat labels without wrinkles or air bubbles and improves your packaging quality.
◆It provides high stability. Its advanced control system includes Panasonic PLC, touch display screen, Panasonic photo‑electric sensor and German LLO label sensor. It supports 7‑by‑24‑hour high‑speed continuous work.
◆It realizes smart control. Automatic photoelectric tracking works constantly. It has auto‑correction and label detection functions. These features avoid missing labels and reduce label waste.
◆It is strong and hygienic. Its main body uses stainless steel and high‑grade aluminum alloy. It meets GMP production standards with solid and nice‑looking structure.
◆It carries fault alarm, production counting, power‑saving mode, production‑number reminder and parameter‑protection functions. These functions make daily production management easy.
◆Optional Functions:
① Hot coding / coding function
② Automatic material collecting function (judge according to actual product conditions)
③ Automatic feeding function (custom‑made for customer requirements)
① Hot coding / coding function
② Automatic material collecting function (judge according to actual product conditions)
③ Automatic feeding function (custom‑made for customer requirements)
Summary
This practical Bottle Labeling Machine runs fast and stably during daily production work. It serves multiple mainstream industries for various small cylindrical goods with high-precision labeling quality and supports different custom optional functions to meet diverse production needs.
