Description

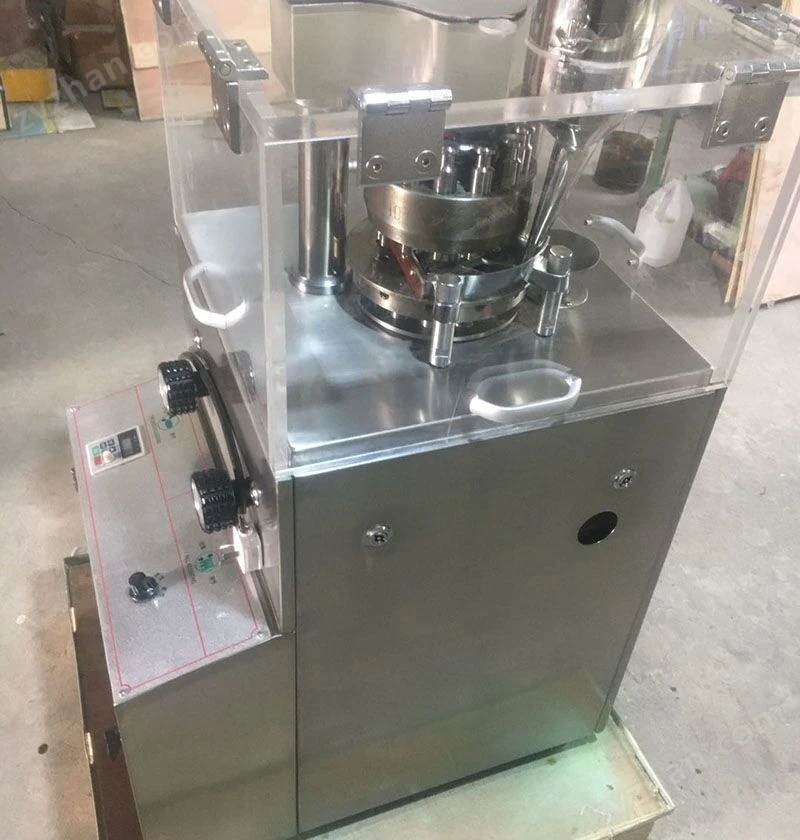

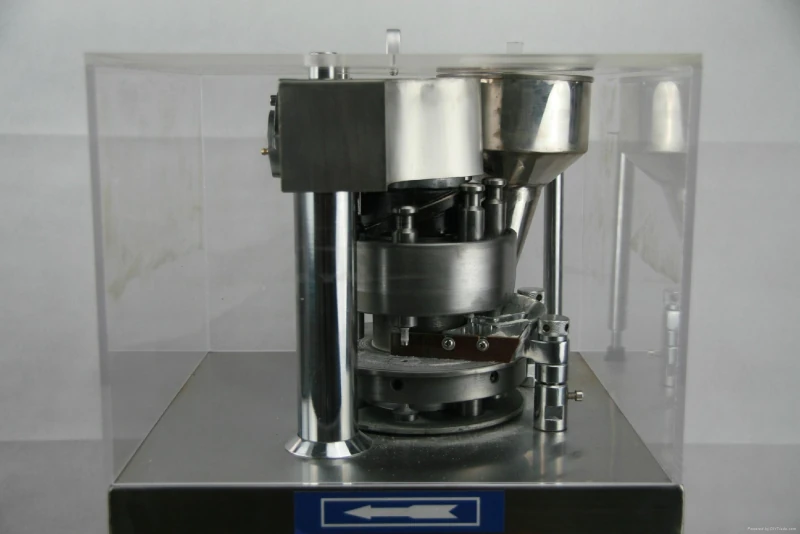

We develop this mini‑size machine based on a multi‑punch tablet press. We upgrade the original model to fix its disadvantages. The machine works better and offers more user‑friendly operation. It fits pharmaceutical, chemical, food, electronics and other industries. Workers use it for technical research and small‑batch production. It is also your preferred device to test whether granular raw materials can turn into tablets.
Features
You can press granular raw materials into tablets within this machine’s pressure range. The raw material needs to reach over 100‑mesh fineness, and its powder content cannot go over 10%. You may make round, special‑shaped or letter‑carrying tablets from 4 mm to 12 mm in size. Do not use this machine for semi‑solid wet granules, low‑melting‑point hygroscopic materials or pure powder without granules.
Technical Parameters
Below are the complete and official technical data of the ZP‑5 Tablet Making Machine. All standard parameters of this Tablet Making Machine support stable operation and meet daily experimental and small‑scale production requirements.
| Parameter Item | Specification |
|---|---|
| Model | ZP‑5 |
| Number of Molds on Turntable | 5 sets |
| Maximum Working Pressure | 40 kN |
| Maximum Tablet Diameter | 12 mm |
| Maximum Tablet Thickness | 6 mm |
| Filling Depth | 15 mm |
| Maximum Output | 9 000 pieces per hour |
| Working Diameter of Turntable | 200 mm |
| Turntable Speed | 0‑30 rev/min |
| Die Diameter | 26 mm |
| Die Height | 22 mm |
| Upper and Lower Punch Diameter | 22 mm |
| Upper and Lower Punch Length | 115 mm |
| Overall Dimensions | 480×635×1100 mm |
| Machine Weight | 260 kg |
| Motor Power | 1.5 kW |
| Voltage | 220 Volts |
Summary
This upgraded ZP-5 Tablet Making Machine has a simple structure and stable performance. It supports flexible tablet production in different shapes and sizes, perfectly fitting laboratory research and small-batch manufacturing for multiple industries.
