Description
Scope of Application
This three-axis desktop quantitative filling machine has a wide range of uses. It is commonly applied in many fields, including biology, pharmacy, medical care, chemical industry, electronics, food, metallurgy and beauty industries.
With XYZ three-axis fixed-point quantitative filling technology, the equipment can fill most liquid and semi-liquid materials. It is suitable for filling nucleic acid reagents, oral liquids, hyaluronic acid, ampoule solutions, testing reagents, fruit juice, e-cigarette oil and other common materials.
Product Features
This section lists key performance points of the Ampoule Filling Machine and this three‑axis desktop filling device for your reference.
- This machine has a small‑sized body and simple operations. You can use it directly on the lab table.
- It gives exact positioning and fast filling speed. It works great for small‑batch production.

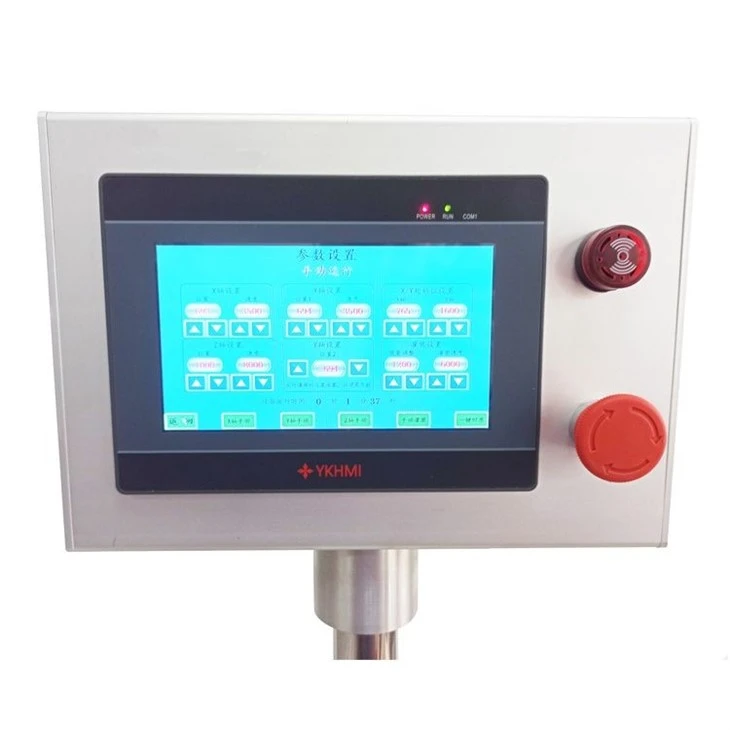

- It uses a human‑machine interface and PLC control. You can set programs ahead of time. One worker can run several machines to get better economic results.
- We make different custom templates for different bottle shapes. The machine fits many kinds of bottles.
- You can pick from many pump styles. You may choose ceramic pumps, peristaltic pumps or plunger pumps.
Technical Parameters
Below are detailed technical data of the three‑axis desktop Ampoule Filling Machine for your checking and selection.
|
Item
|
Parameter
|
|---|---|
|
Power Supply
|
220V, 50Hz (110V and 220V wide voltage available)
|
|
Rated Power
|
200W
|
|
Filling Volume (Peristaltic Pump)
|
1-200ml
|
|
Filling Accuracy
|
±1-2%
|
|
Table Size
|
300×300mm
|
|
Overall Dimensions
|
850×650×650mm
|
|
Machine Weight
|
55kg
|
Product Advantages
The equipment supports customized templates to fit almost all types of bottles, with strong compatibility. It adopts XYZ three-axis coordinate precise positioning and insert-type filling design, which effectively prevents liquid splashing and ensures clean and accurate filling.
The whole machine is made of 304 stainless steel, which meets the standard of pharmaceutical production and laboratory research and development. Users can freely set the filling volume, filling speed and filling times through the human-machine interface, and the operation is flexible and convenient.
Precautions
This machine uses wide-voltage power supply and can work normally under 110V and 220V voltage. When adjusting the equipment coordinates, please remove the filling needle first to avoid needle breakage.
The X-axis and Y-axis stroke of the machine is 300mm respectively, and the system cannot save data if the setting exceeds this range. After each power-on startup, please confirm that the three axes have returned to the original position; otherwise, the machine will trigger an alarm prompt.
Product Summary
This three-axis desktop quantitative filling machine is a compact, practical and high-precision filling device.
It has simple operation, stable performance and strong compatibility with various materials and bottle types. Suitable for laboratory use and small-batch production in multiple industries, this machine effectively improves filling efficiency and accuracy, with safe material quality and flexible adjustment functions.
It is a cost-effective and reliable filling equipment for daily research and small-scale production work.
