Description
Scope of Application

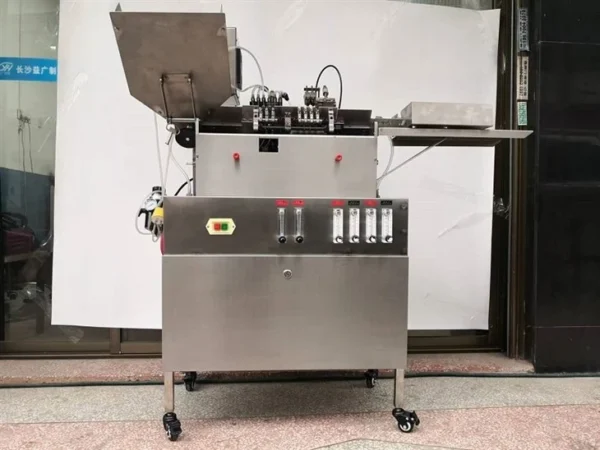

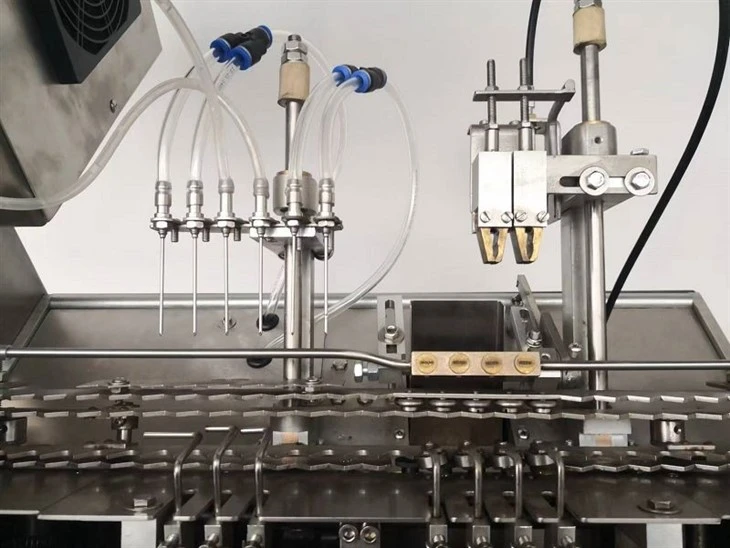

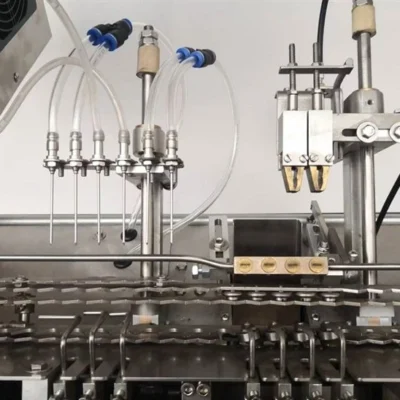

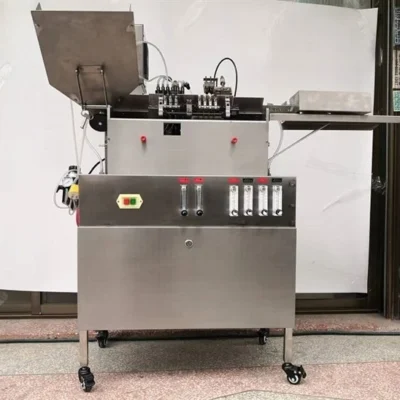

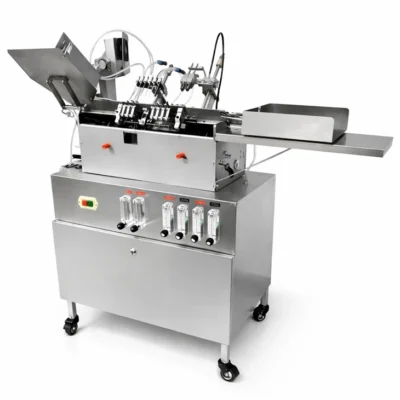

The AGL-2 peristaltic pump filling machine, a practical Monoblock Filler, is an upgraded model based on our original ampoule drawing, filling and sealing machine. We upgraded this machine to meet customers’ personalized customization needs. It mainly solves common problems of old mechanical plunger pumps, such as complicated early setup, liquid dripping during filling and unstable filling volume. It is especially good for lab workers who have no experience using filling machines.
Main Features
-

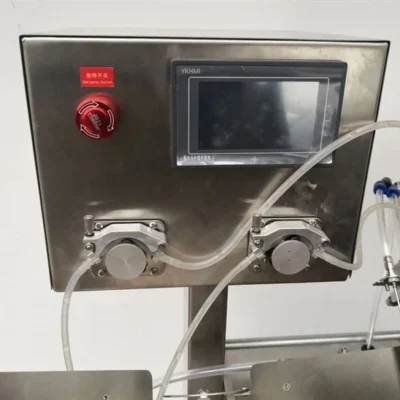

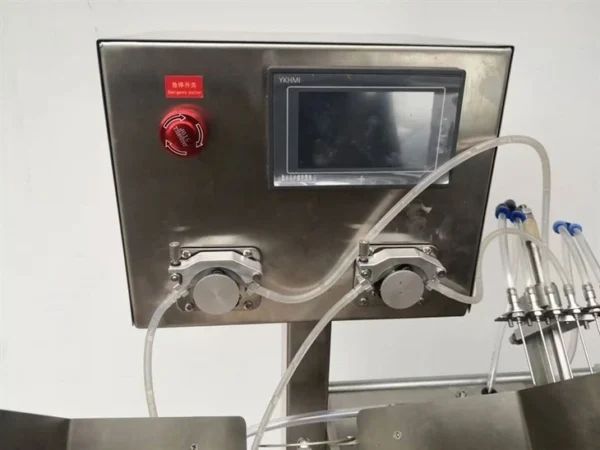

The filling system uses a PLC controller and a peristaltic pump. It responds quickly and will stop filling automatically when there is no bottle in place.
-
The peristaltic pump is driven by a stepping motor with pulse control. This design greatly reduces liquid leakage and dripping.
-

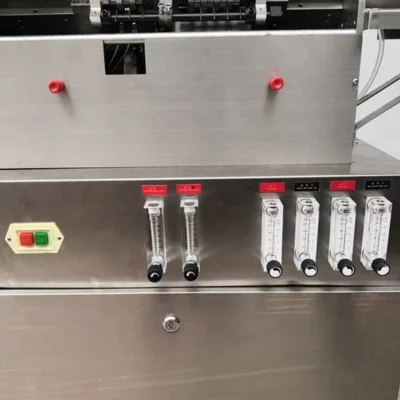

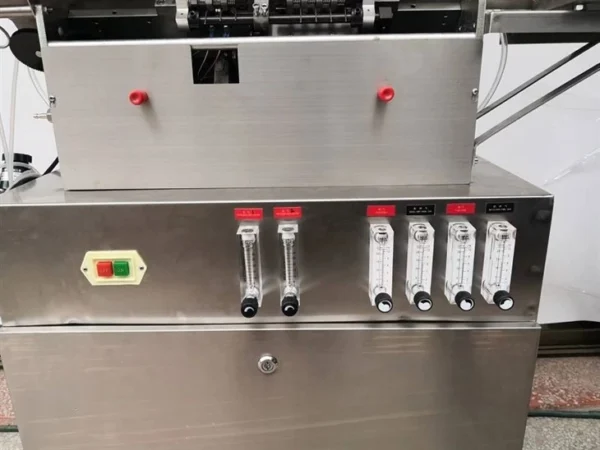

The gas control valve is matched with a flow meter. It replaces old copper valves that are hard to adjust.
Technical Parameters
| Item | Specification |
| Applicable bottle volume | 1–2 ml |
| Hourly production capacity | 2400–3600 pieces per hour |
| Motor parameters | 220V, 370W, 50Hz |
| Optional fuel gas | Liquefied petroleum gas, coal gas, acetylene |
| Coal gas consumption | 0.5–0.7 m³ per hour |
| LPG working pressure | 0.08–0.1 Mpa |
| Oxygen flow rate | 0.4 m³ per hour |
| Oxygen working pressure | 0.1 Mpa |
| Overall machine dimensions | 1000 * 750 * 1000 mm |
| Net machine weight | 75–85 kg |
Product Comparison
| Comparison Item | Traditional Plunger Pump Filler | AGL-2 Peristaltic Pump Monoblock Filler |
| Early debugging | Complicated and time-consuming | Simple, easy to set up |
| Liquid dripping & leakage | Serious dripping, obvious leakage | Almost no dripping, little leakage |
| Filling measurement accuracy | Unstable, large volume error | Precise and consistent filling volume |
| Control mode | Single mechanical control | PLC + stepping motor pulse control |
| Gas regulating structure | Hard-to-adjust copper valve | Flowmeter matched gas control valve |
| Suitable users | Experienced professional operators | New lab workers with zero operating experience |
Packing and Shipping
We wrap every machine with professional shockproof packing materials. Standard packing can stop machines from scratches, bumps and deformation during long-distance transport. We cooperate with stable global logistics teams. They can deliver all machines safely and on time to customers all over the world.
Product Summary
The AGL-2 peristaltic pump monoblock filler, a reliable Monoblock Filler, is an upgraded ampoule filling and sealing machine made for laboratory and small-batch pharmaceutical production. It fixes many weak points of old plunger pump filling equipment. With simple debugging, accurate metering and anti-leakage design, this machine is friendly to new operators without professional operation skills. It works perfectly for 1–2ml ampoule filling tasks and supports multiple fuel gas options. It is a practical, cost-effective small monoblock filling machine for drug labs and small pharmaceutical workshops.
