Description

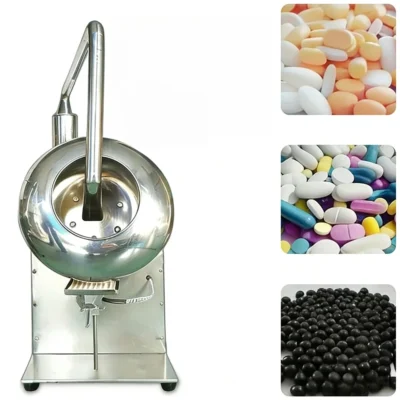

A sugar coating machine is special pharmaceutical equipment. It covers tablets, pills or small round pellets with sugar coats or thin film coats.
The BY-300/400 series upgrades old coating machines. It is easy to use. After coating, your tablets will have smooth, shiny surfaces. The coat spreads evenly and forms thin fine layers. It also saves your raw coating materials. This machine fits lab research, small trial production and small-batch medicine coating perfectly.

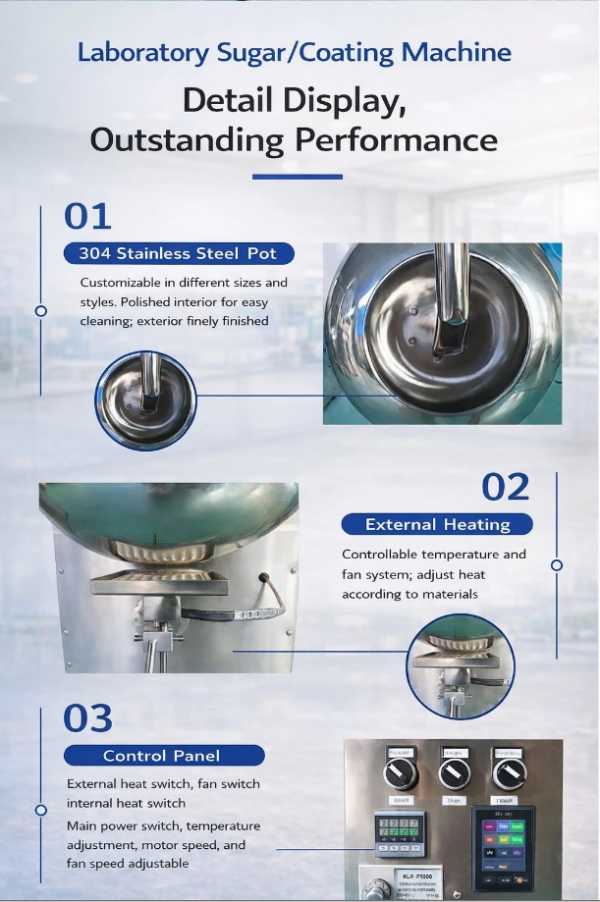

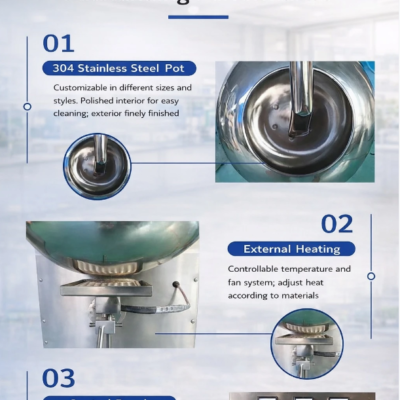

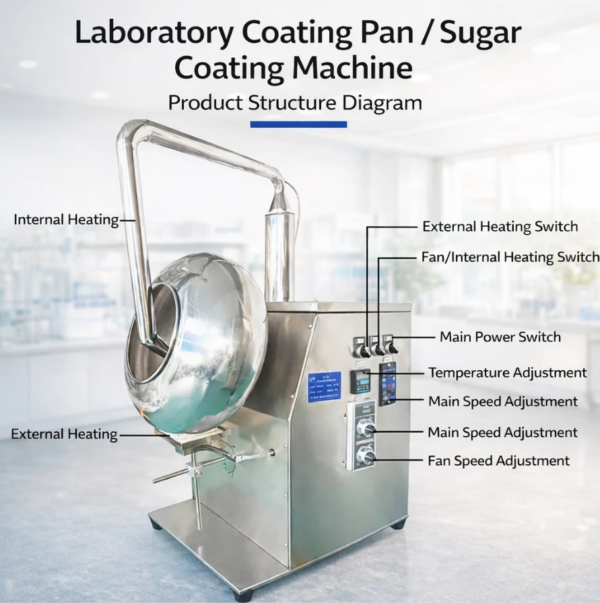

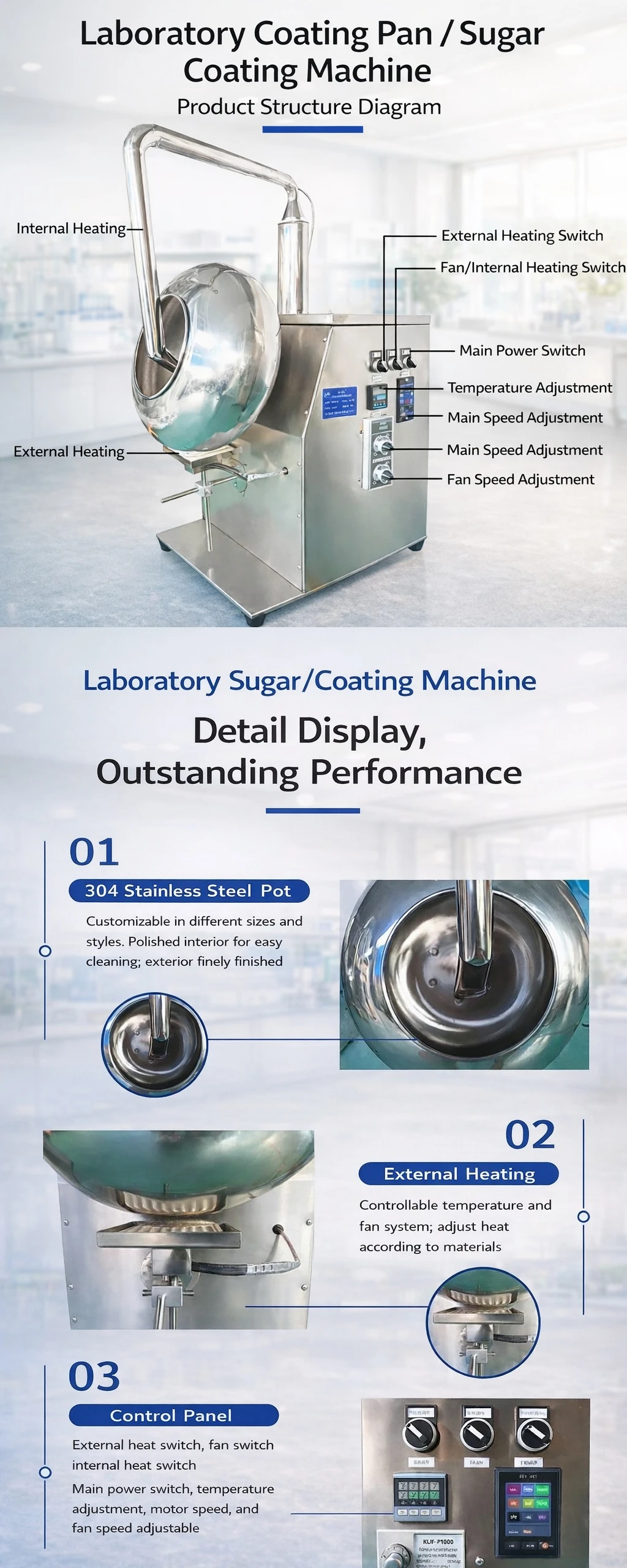

This machine has three key parts: a turning stainless steel coating pan, a frequency conversion speed control system and a controllable hot air system. These parts work together to make better coated tablets.
You can change the main motor speed freely. Just adjust it based on tablet sizes, batch amounts and coat types. This way, every tablet or pellet gets an equally thick coat and a shiny look.
Tablets and pellets coated by the BY-300 have four clear advantages:
- The coat sticks firmly to the medicine core.
- Sugar or film coats are thick evenly, smooth and tight.
- Coated products can stay in good condition for a long time in storage.
- You do not need extra polishing machines to make tablets shiny.
The BY-300/400 coating machine works fast and reliably. It makes the same good coats for every batch. People use it for lab tests, small trial runs and small medicine factories. It also works for food and candy industries, such as wrapping chocolate on snacks.
How to operate the BY-300 sugar coating machine
- Put tablets, pills or small grains into the coating pan.
- Preheat and remove water: Turn on the heater and hot air system. Dry the inner medicine cores gently before you add any coating liquid.
- Spray coats by hand: Let the pan turn clockwise. Spray sugar syrup or film coating liquid little by little. Make sure every tablet gets full and even liquid coverage.
- Dry while spraying: After every spray round, blow hot air to dry the new coat. This stops tablets from sticking together, leaving spots or getting uneven coats.
- Repeat spraying and drying: Keep spraying liquid and drying coats again and again. Stop when the coats reach your ideal thickness, color and shine.
- Take out finished products: Turn off the machine and collect all fully coated tablets and pellets.
Note: This machine has a built-in hot air system. You need to prepare an air supply device by yourself.
Full coating working order
Preheat and dry water → Spray coating liquid → Dry coats with hot air → Repeat the steps until you get smooth, shiny sugar or film coats.
Detailed working principle
The BY-300 finishes coating through the teamwork of a rotating coating pan and a controllable hot air system.
Tablets and pellets roll, slide and polish nonstop inside the stainless steel coating pan.
The heating system dries each new coat softly. It never damages the inner medicine cores.
You spray coating liquid by hand and dry coats with hot air many times. This process builds tight, even and shiny coats on medicines.
The frequency conversion speed control changes the pan’s turning speed. It improves how tablets roll and makes coats much more even.
Finally, all tablets get equally thick sugar or film coats. They look shiny and the coats do not fall off easily.
Key production tips
If you want fast, even coat crystals and shiny polished tablets, use the BY-300 in this way: spray sugar syrup or coating liquid little by little by hand while the pan turns clockwise. Tablets roll and polish themselves. Hot air takes away water on tablet surfaces. Every single tablet gets coats of the same thickness. The final products look clean and have no bad marks. The pan keeps a steady moving speed for smooth material flow. It fully meets strict high standards for pharmaceutical sugar coating.
Technical Parameters
| Item | Parameter |
|---|---|
| Product Name | Tablet Sugar Coating Machine |
| Application | Laboratory / Small-scale Production / Pilot Batch |
| Coating Pan Diameter | 300 mm / 400 mm |
| Production Capacity | 1.5–3 kg per batch (BY-300); 2–5 kg per batch (BY-400) |
| Pan Speed | 0–46 revolutions per minute (Frequency Conversion Control) |
| Coating Type | Sugar Coating / Film Coating |
| Heating Method | Blower Heating with Controlled Ambient Hot Air |
| Main Motor Power | 1020 W |
| Air Blower Capacity | 0.5 cubic meters per minute |
| Pan Material | Stainless Steel (GMP Compliant) |
| Machine Weight | 30 kg |
| Overall Dimensions | 550 mm × 400 mm × 930 mm |
| Air Compressor | User prepared |
Product Comparison Table
| Comparison Item | BY-300 / BY-400 Sugar Coating Machine | BY-300C / BY-400C Film Coating Machine |
|---|---|---|
| Machine Type | Desktop sugar coating machine with manual spray guns | Film coating machine with automatic spray guns |
| Main Application | Sugar coating, polishing, basic coating | Film coating, sugar coating, functional slow-release coating |
| Applicable Scene | Laboratory, small-scale trial, teaching | Laboratory, small-scale trial, pharmaceutical R&D |
| Coating Method | Manual spraying of syrup and additives | Automatic spraying with high-atomization spray guns |
| Automatic Liquid Supply | ❌No, fully manual operation | ✅Yes, complete automatic liquid & air supply system |
| Drying Method | Forced hot air drying (external air compressor required) | Controllable constant-temperature hot air system |
| Coating Uniformity | Good | ⭐⭐⭐⭐ Very uniform |
| Coating Efficiency | Medium | Relatively high |
| Surface Effect of Finished Products | Bright, smooth and delicate coating surface | Dense, complete and thin uniform film layer |
| Coating Pan Material | GMP-compliant stainless steel | GMP-compliant stainless steel |
| Pan Diameter | 300 mm / 400 mm | 300 mm; 400 mm optional for BY-400C |
| Batch Capacity | 1.5–3 kg (BY-300); 2–5 kg (BY-400) | 1–4 kg |
| Pan Rotation Speed | 0–46 r/min | 0–46 r/min |
| Main Motor Power | Total 1020 W | 0.55 kW |
| Total Heating Power | With heating function | 1.5 kW |
| Fan Parameter | Air volume: 0.5 m³/min | Fan power: 40 W |
| Hot Air Temperature Range | – | Ambient temperature ~ 80 ℃ |
| Air Compressor Requirement | Required, prepared by users | Required, prepared by users |
| Pan Tilt Angle | – | 15°–45° |
| Machine Weight | Around 30 kg | – |
| Overall Machine Size | 550 × 400 × 930 mm | – |
| Operation Difficulty | ⭐⭐ Simple | ⭐⭐⭐ Slightly higher |
| Recommended Users | Budget-limited clients needing traditional sugar coating | R&D teams and clients with film coating demands |
| Standard Configuration | One main machine | One main machine, liquid storage cup, cup holder, spray gun, optional 300/400 mm coating pan, air pipe |

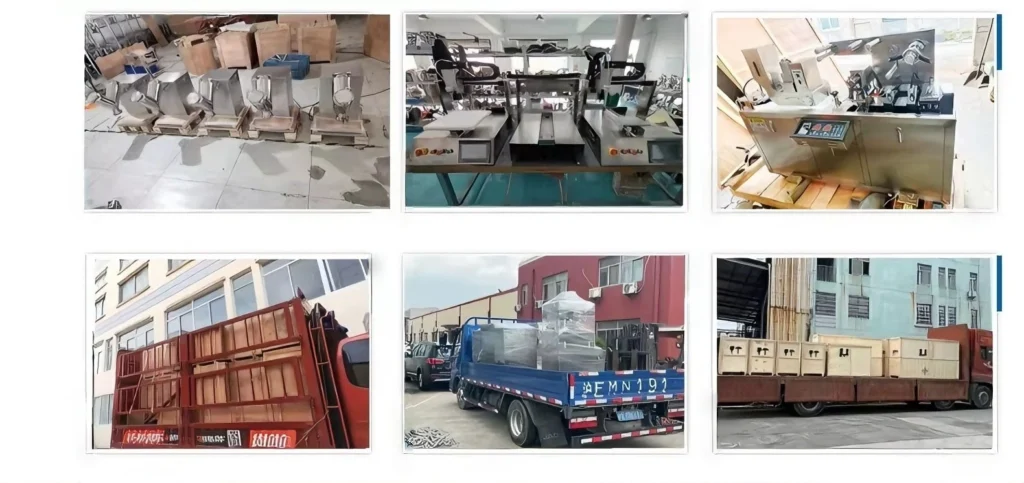

Packing and Shipping
We wrap every machine with professional shockproof materials. Our standard packing stops scratches and collision damage during long-distance transport. We work with stable international logistics services. They send all machines to customers all over the world safely and on time.
Product Summary
The BY-300 and BY-400 compact tablet sugar coating machines are space-saving, easy-to-operate small coating devices for low-volume production. All contact parts are stainless steel that meets GMP pharmaceutical standards, and adjustable variable frequency speed ensures uniform, glossy sugar coating results. The simple manual operation makes them ideal for school labs, pharmaceutical research institutes and small medicine manufacturers with limited budgets. Apart from pharmaceutical tablets and pills, they can also coat chocolate and other food products. If you need automatic film coating performance, you can choose the upgraded BY-300C and BY-400C automatic film coating models as better alternatives.
